Intermittent Wiper Relay Check

Intermittent Wiper Relay:

1. Remove the quarter trim.

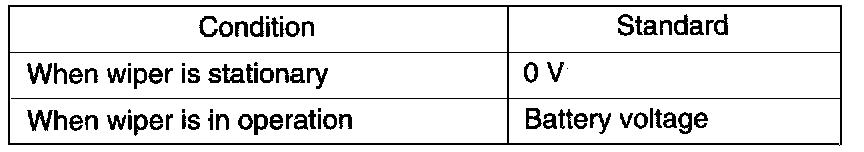

Intermittent Wiper Relay Continuity Table:

2. With the intermittent wiper relay connected to the wiring harness connector, let the wiper operate intermediately and check the voltage at terminal (2).
