Starter Relay: Description and Operation

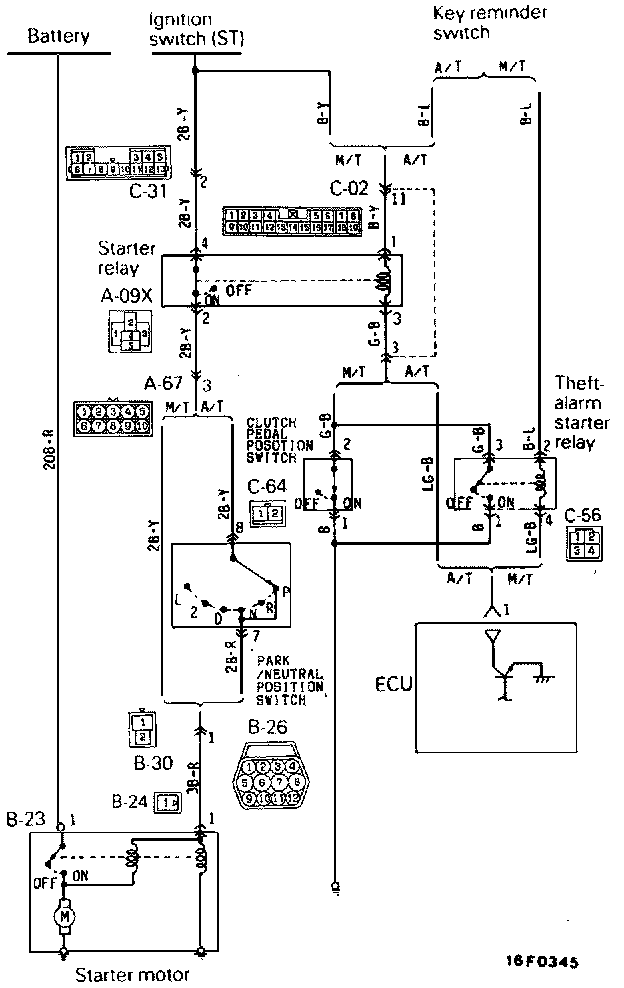

Starter Relay Activation Circuit

Starter Relay Activation Circuit:

Starter Relay Activation Circuit Operation Circuit:

The ECU transistor is turned ON if the vehicle door etc. are opened without use of the key. This turns OFF the starter relay and power ceases to be supplied to the starter magnet switch.

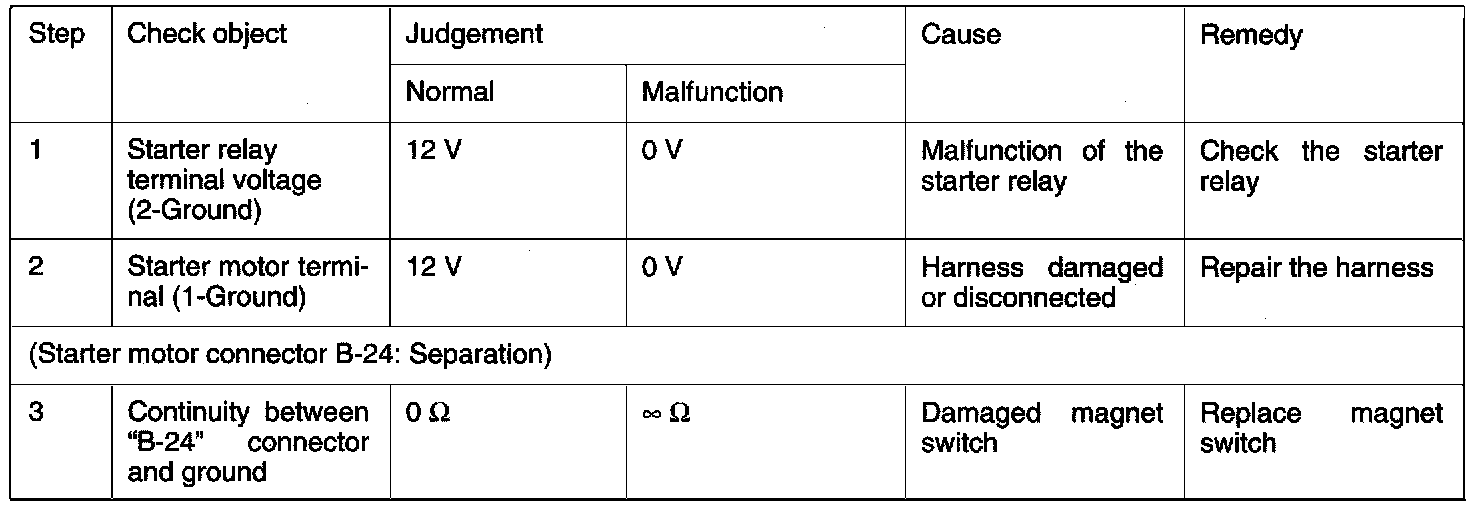

Checking the starter relay activation circuit (Disconnect the connector of the ECU, depress fully the clutch pedal and activate the starter relay)
