Headlamp Relay: Testing and Inspection

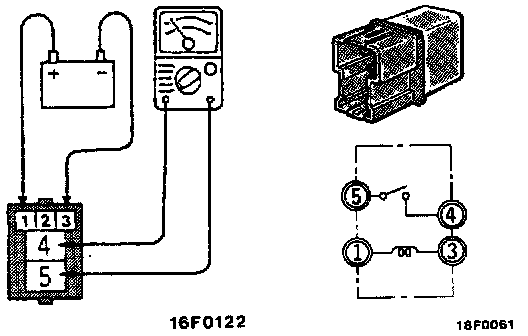

Headlight/Taillight/Fog Light Relays Inspection:

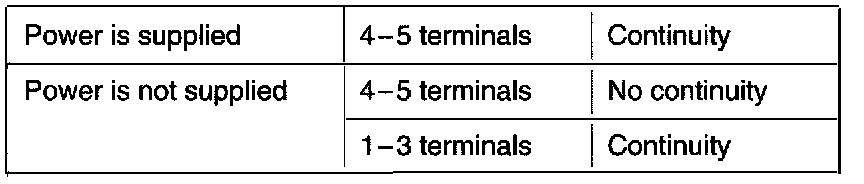

Headlight, Taillight And Fog Light Relay Continuity Table:





Connect battery to terminal 1 and check continuity between terminals with terminal 3 grounded.
