ABS Main Relay: Testing and Inspection

1. Remove relay box cover in engine compartment, then the power relay.

Fig 74 Power Relay Inspection:

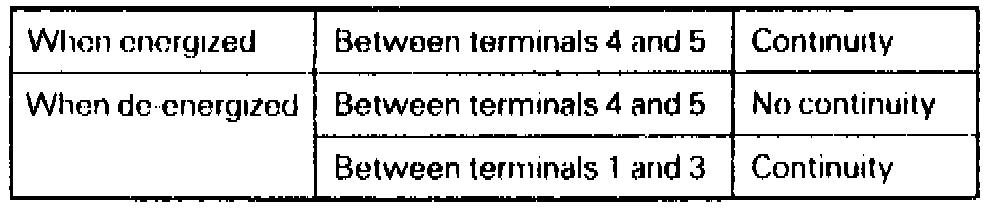

Fig 75 ABS Power Relay Continuity Chart:

2. Apply battery voltage to terminal 1 and check for continuity between terminals as shown, with terminal 3 short-circuited to ground.
3. If continuity is not as specified, replace power relay.
