Timing Marks and Indicators: Locations

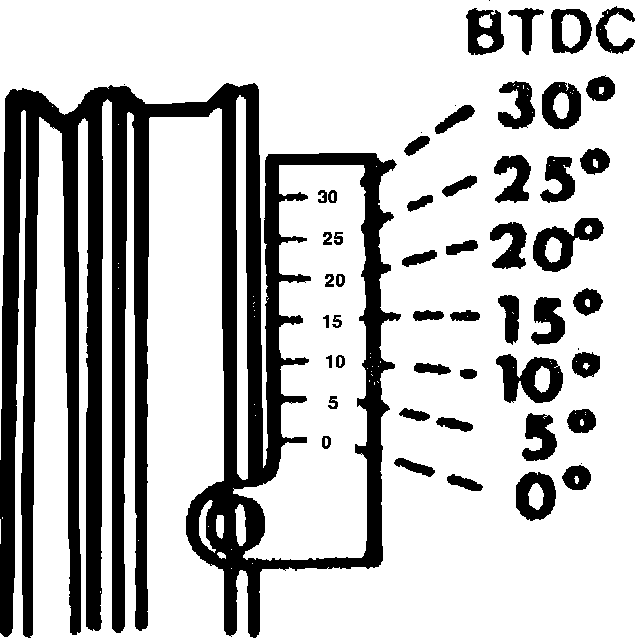

TIMING MARK, 3.0L:





The timing marks are located above the front crankshaft pulley.
