Ignition Cable: Diagrams

Ignition Cable Routing:

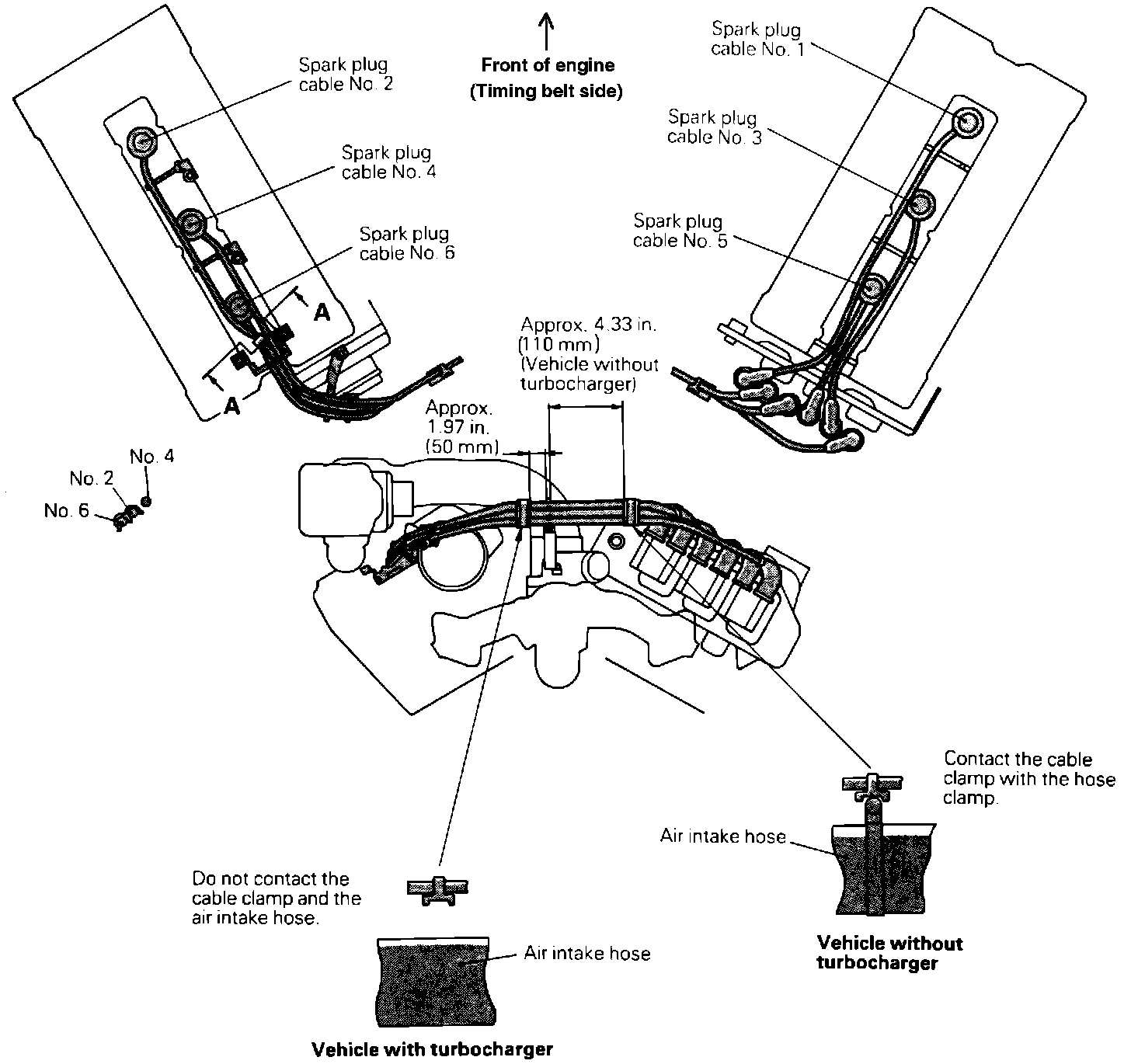

An overview of the ignition cable routing and an overall engine layout view.
