Fail-Safe or Limp Mode

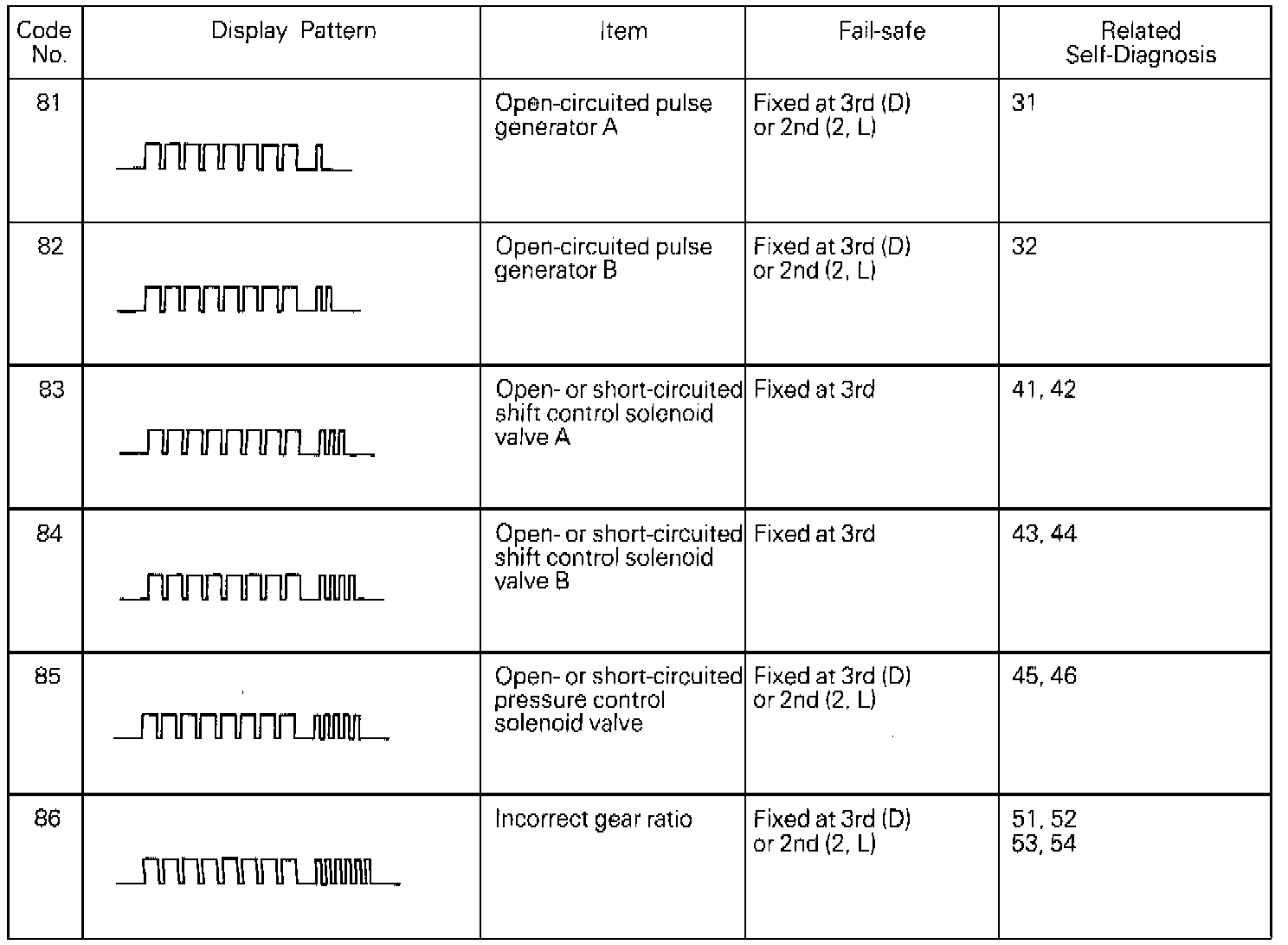

Fail Safe Functions (Codes 81-86):





In the event of a component failure, the Transmission Control Module (TCM) will compensate by adjusting the transmission shift pattern. The appropriate Diagnostic Trouble Code will also be set into the TCM's memory.
