Ignition Switch: Testing and Inspection

Ignition Switch Inspection:

1. Remove the knee protector, the column cover lower and the column cover upper.

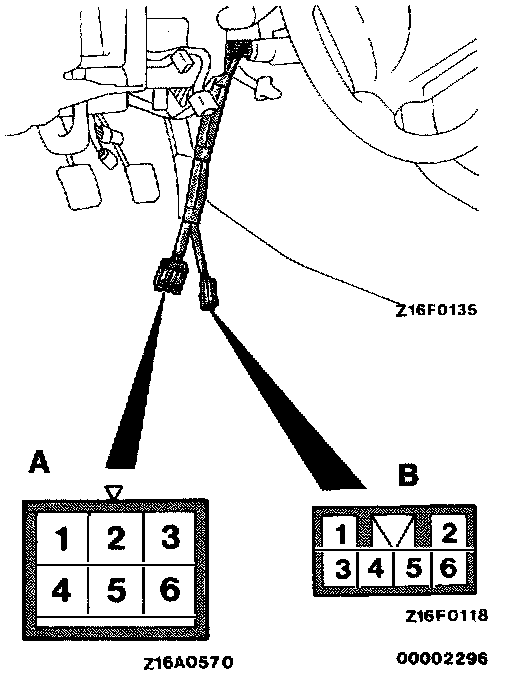

2. Disconnect the wiring connector from the ignition switch and key reminder switch, and connect an ohmmeter to the switch side connector.

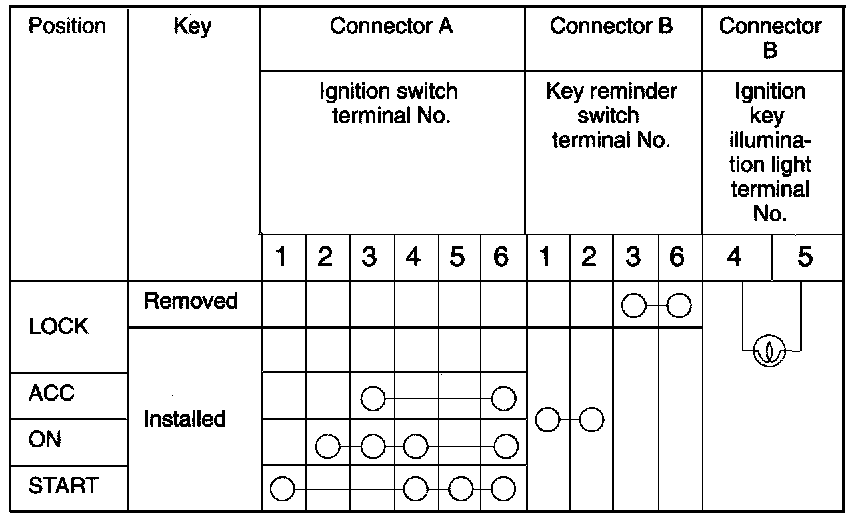

Ignition Switch Continuity Table:

3. Operate the switch, and check the continuity between the terminals.
