Throttle Body: Locations

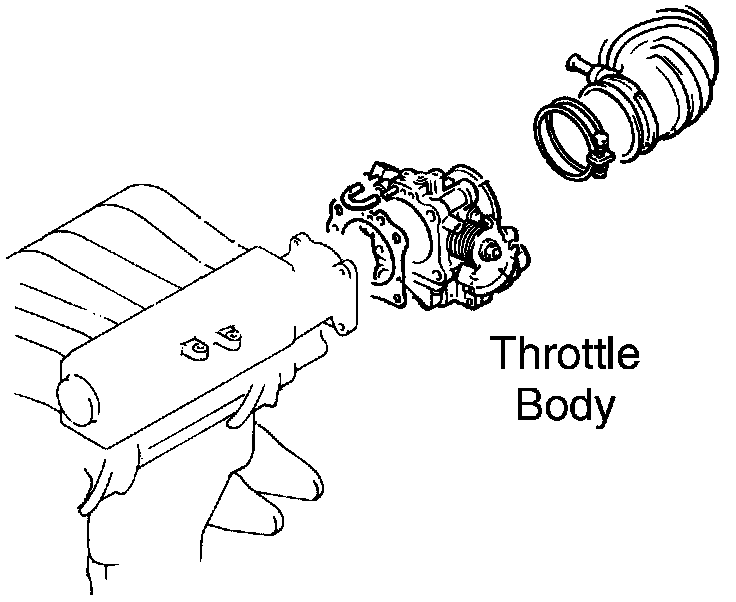

Throttle Body Position:





The throttle body is mounted on the intake manifold.
