Fuel Pump Ballast Resistor: Testing and Inspection

Fuel Pump Resistor Location:

1. Disconnect the Fuel Pump Resistor connector.

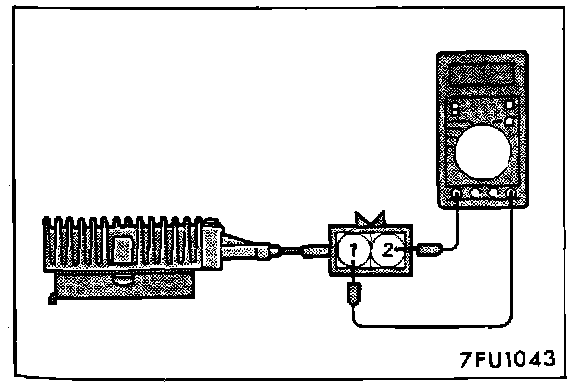

Testing Fuel Pump Resistor:

2. Measure the resistence between the connector terminals.

Standard Value 0.6 - 0.9 ohms

3. If the resistance deviates from the standard value, replace the Fuel Pump Circuit Resistor.
