Fuel Pump Ballast Resistor: Locations

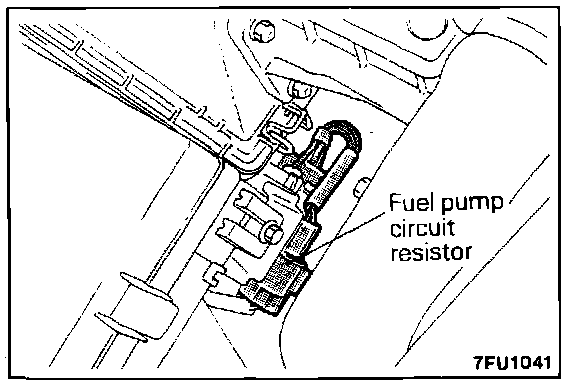

Fuel Pump Resistor Location:





Mounted below the Power Distribution Center.
