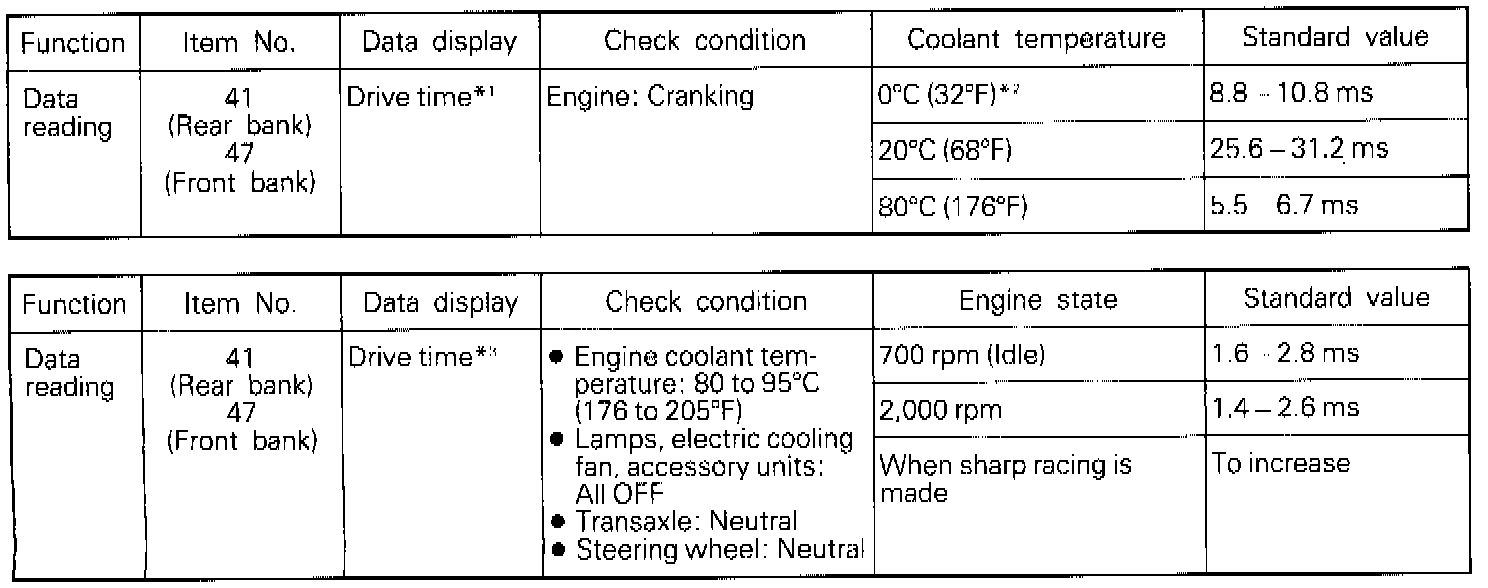

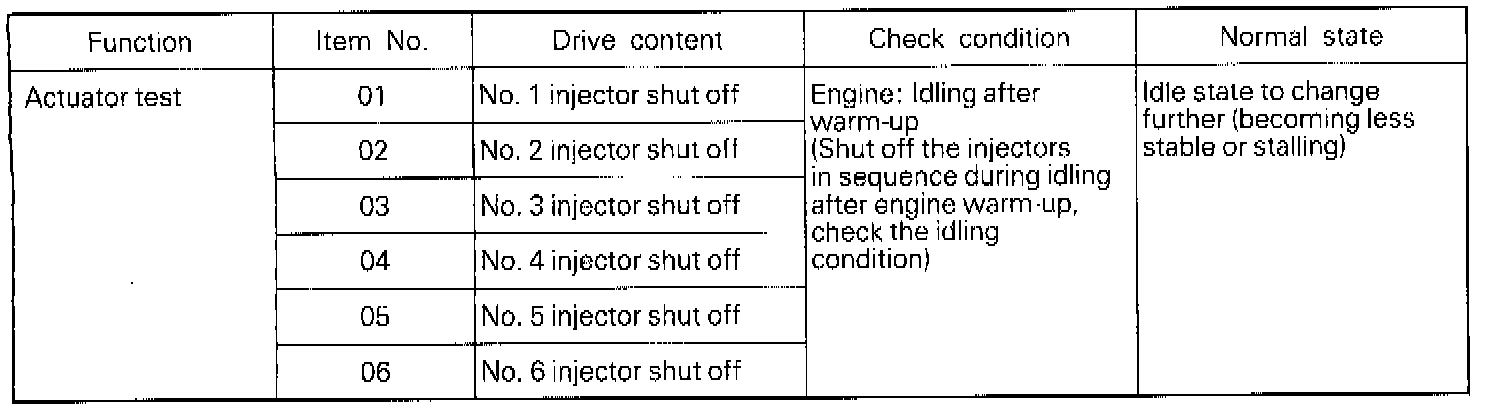

Scan Tool Testing and Procedures

NOTES:
1. The injector drive time refers to when the supply voltage is 11 V and the cranking speed is less than 250 RPM.

2. When coolant temperature is lower than 0°C (32°F), injection is made by 6 cylinders simultaneously.

3. When the vehicle is new [within initial operation of about 500 km (300 miles)], the injector drive time may be about 10% longer.
