Actuator Inspection

FRONT INJECTOR BANK





1. Disconnect the injector connector.

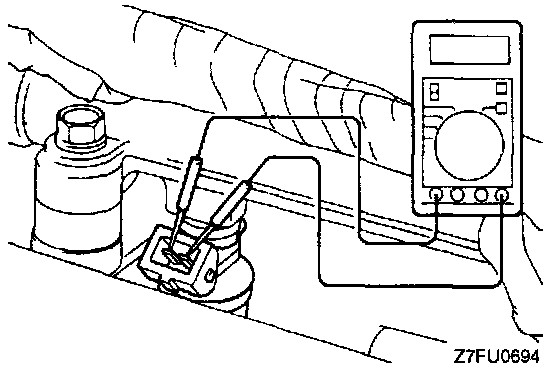

2. Measure the resistance between the terminals.

Standard Value: 13 - 16 ohms @ 20°C (68°F)

3. Install the injector connector.



REAR INJECTOR BANK

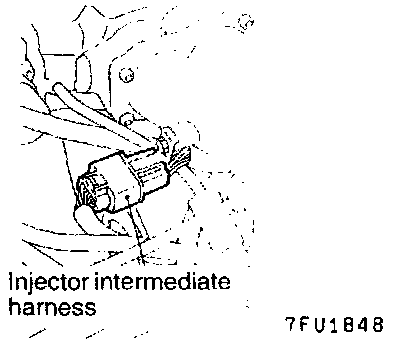

1. Disconnect the injector intermediate connector.

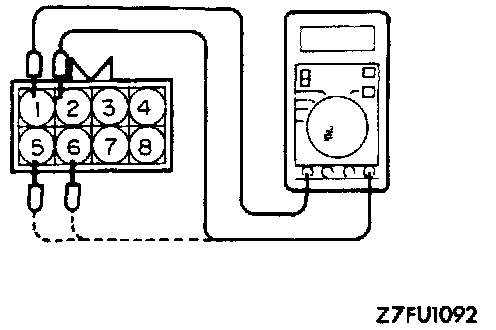

2. Measure resistance between terminals.

Injector number Measuring terminals Resistance
2 1 - 2
4 1 - 5 13 - 16 ohms @ 20°C (68°F)
6 1 - 6
