Fuel Injector Resistor: Testing and Inspection

MEASUREMENT OF RESISTANCE BETWEEN TERMINALS

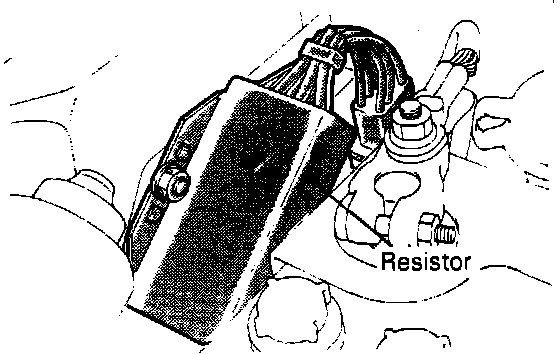

Injector Resistor Location:

1. Disconnect the resistor connector.

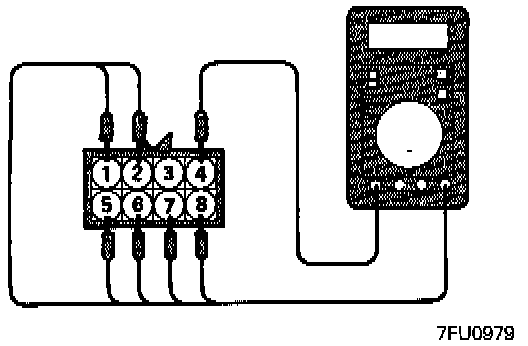

2. Measure the resistance between terminals.

Measuring Resistance
terminals

1-4
2-4
5-4 5.5 6.5 ohms
6-4 [At 2O°C (68°F)]
7-4
8-4

3. If the resistance is out of specification, replace the resistor.
