Front

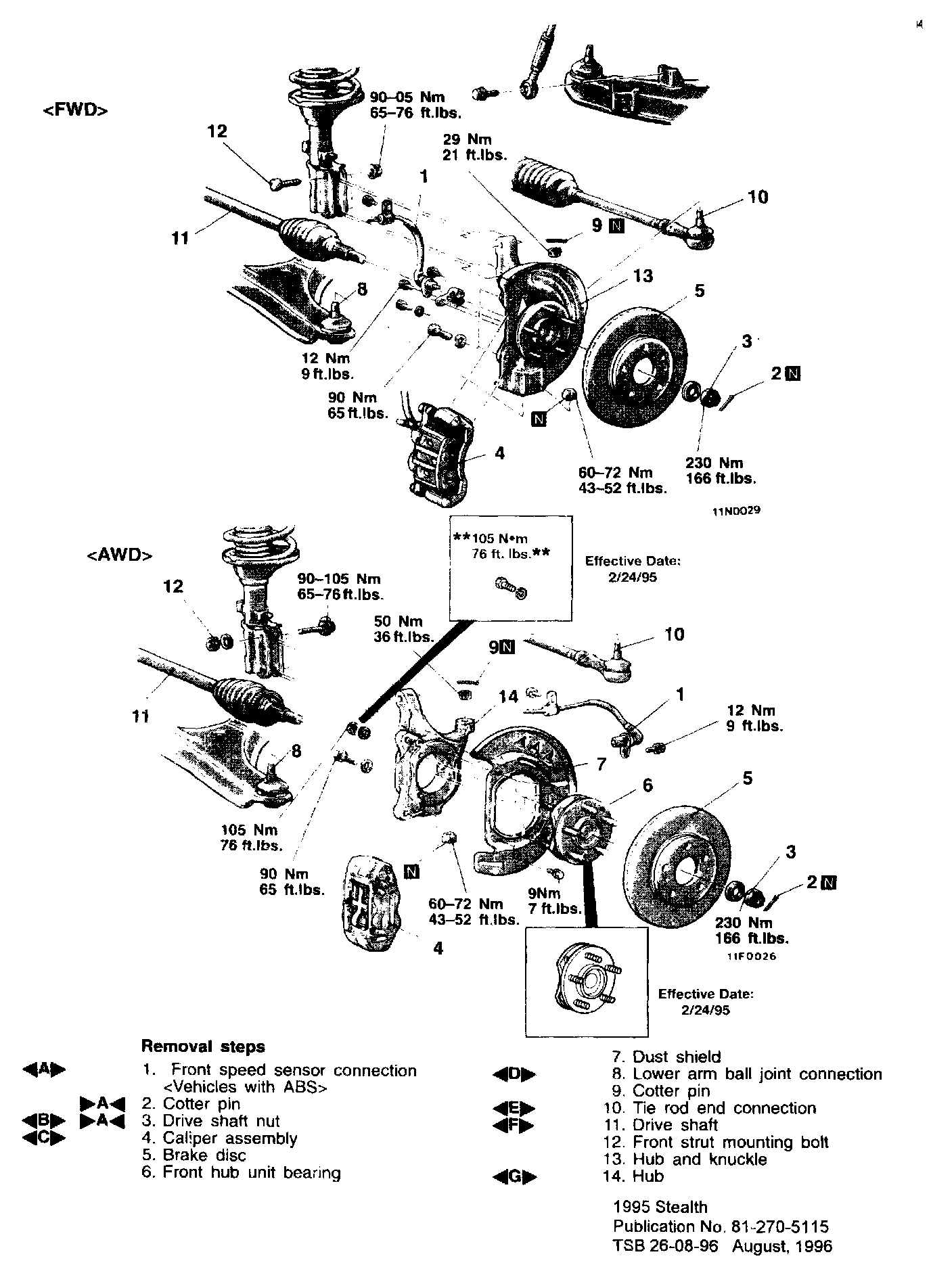

Fig. 1 Exploded View Of Front Suspension Components:

1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove vehicle speed sensor retaining bolt from knuckle assembly, then suspend sensor.
4. Remove hub nut cotter pin, then hub nut.
5. Remove caliper retaining bolts, then suspend caliper out of way.
6. Remove front hub unit bearing retaining bolts from rear of steering knuckle assembly, then press driveshaft from hub unit and backing plate.
7. Remove tie rod end from steering knuckle assembly.
8. Press lower ball joint assembly from steering knuckle.
9. Suspend driveshaft assembly with wire, then swing steering knuckle clear of driveshaft assembly.
10. Remove steering knuckle to strut retaining bolts, then steering knuckle.
11. Reverse procedure to install. Torque all bolts to specification.
