Horn Relay: Description and Operation

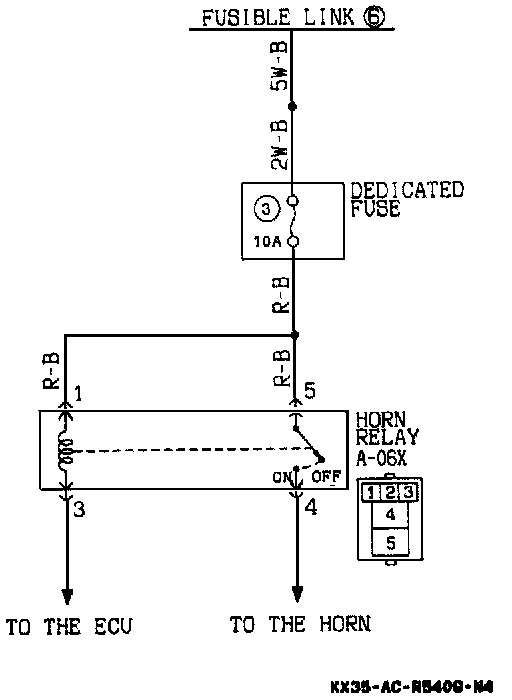

Horn Relay Power Supply Circuit:

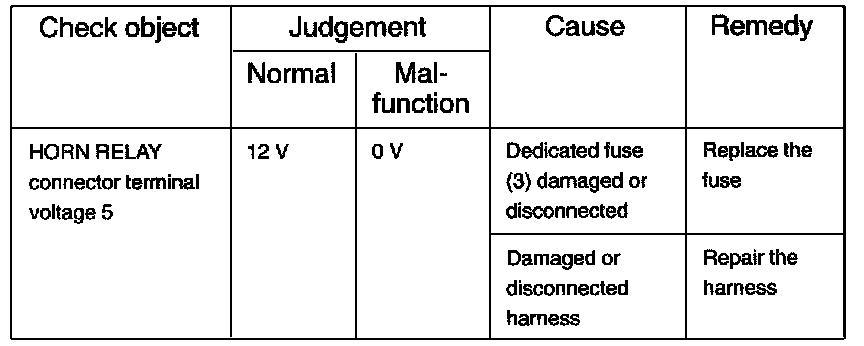

Horn Relay Power Supply Circuit Continuity Table:

Power voltage is always supplied to the horn relay.
Checking the horn relay power-supply circuit (Disconnect the horn relay)
