Vertical Adjusting

Vertical Adjusting:

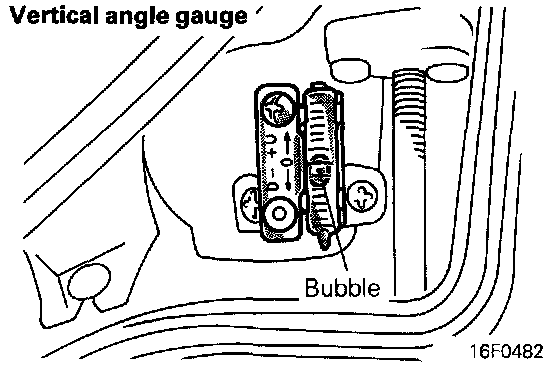

Headlight Aiming: Vertical Angle Gauge:

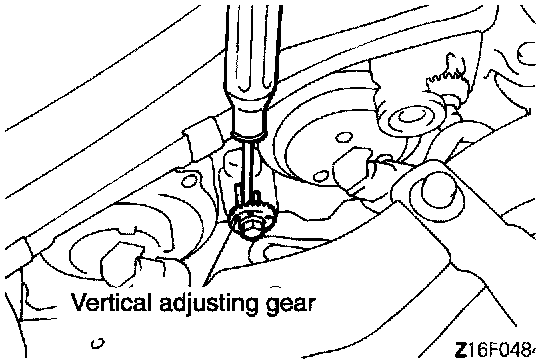

- Adjust the vertical angle with the vertical adjusting gear so that the bubble of the vertical angle gauge is aligned with the 0" mark position.

NOTE: The beam angle will change about 0°12' with on mark
