Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair

Headlamp: Service and Repair

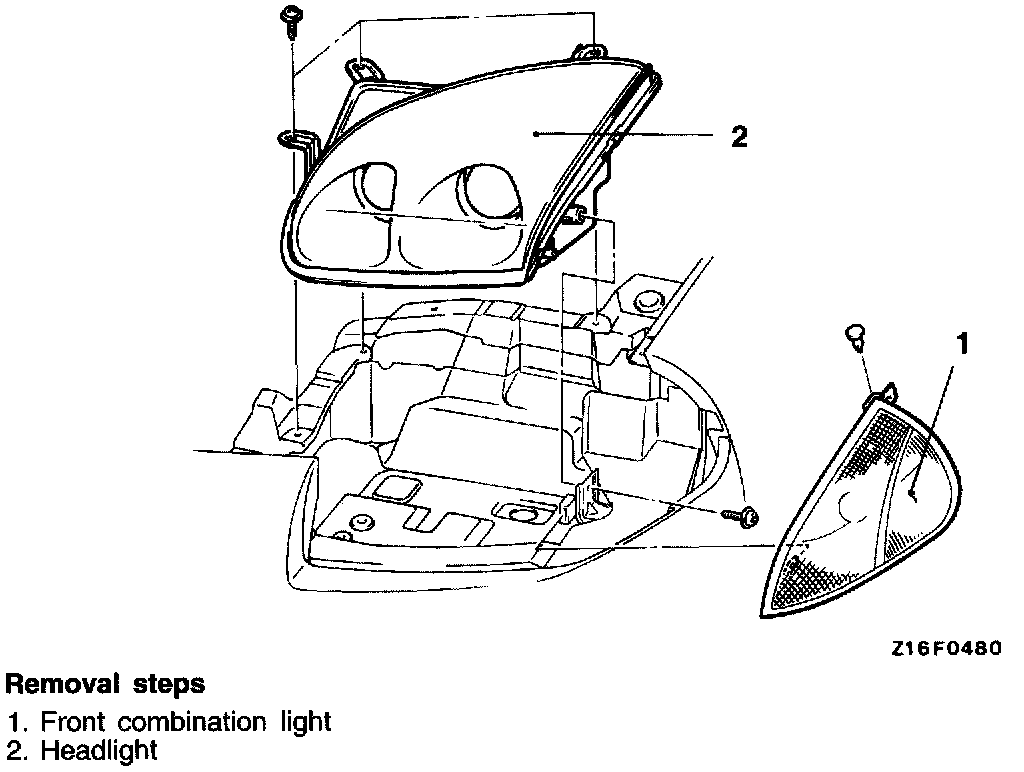

Headlight - Removal And Installation:

REMOVE
1. Front combination light
2. Headlight

INSTALL
1. Headlight
2. Front combination light
