Headlight Activation Circuit

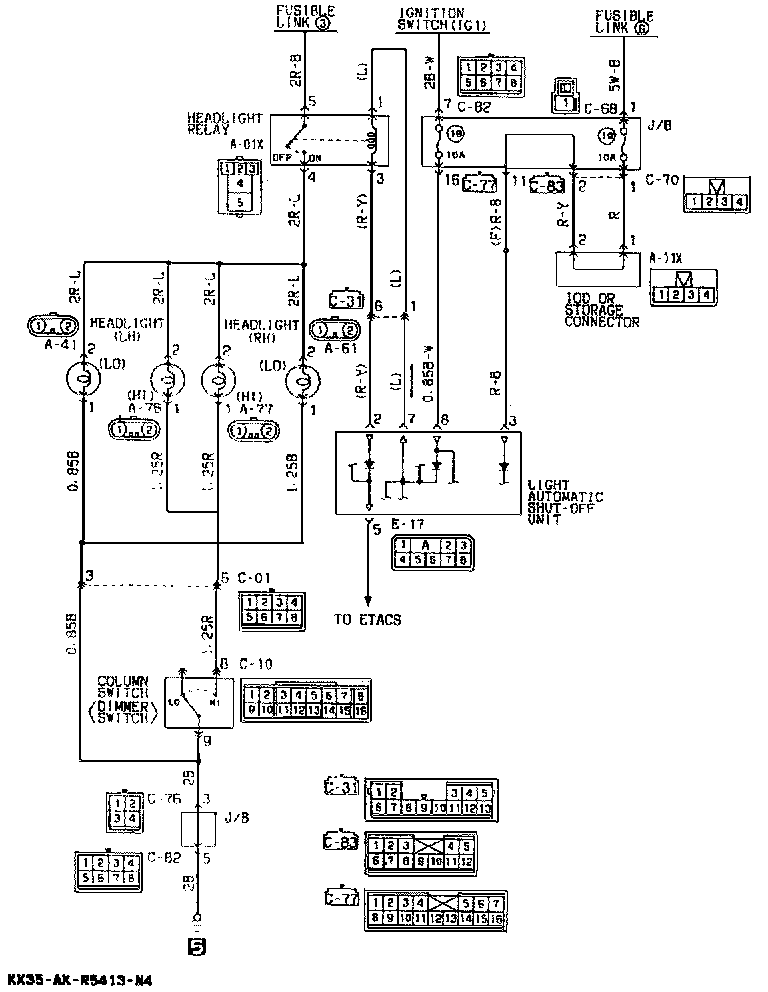

Headlight Activation Circuit:

Headlight Activation Circuit Operation Circuit:

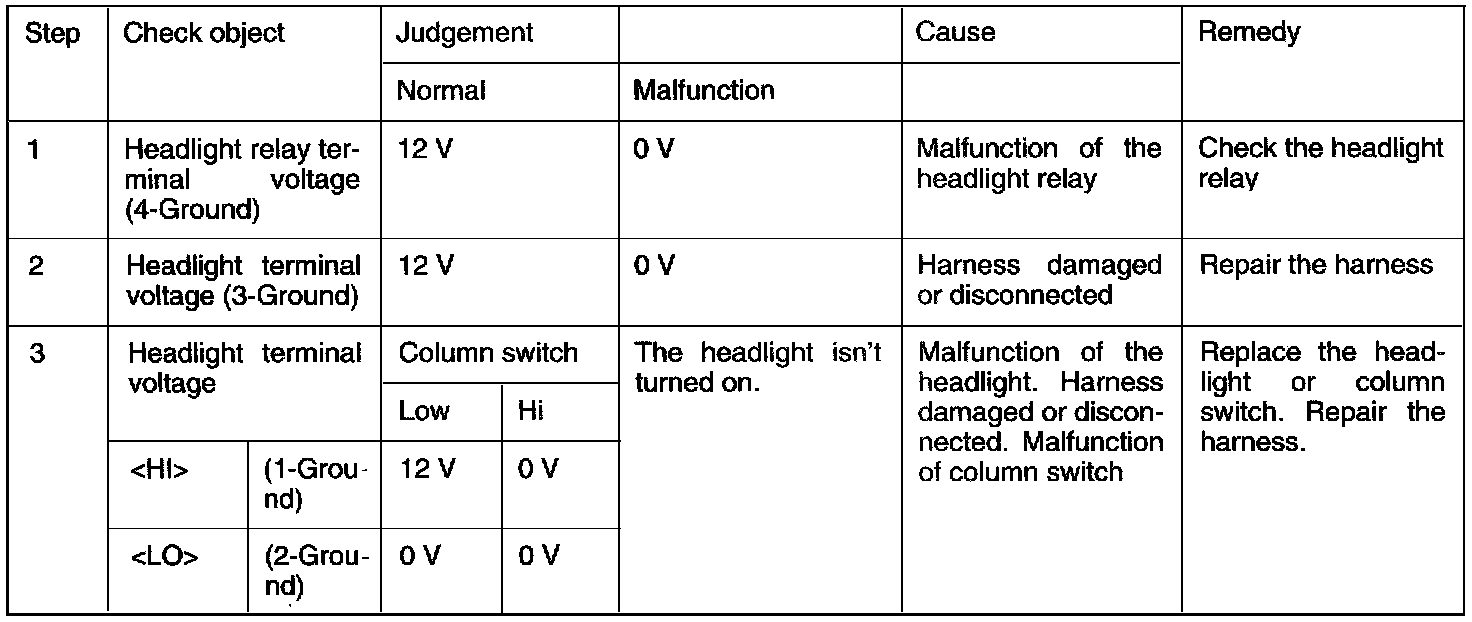

The ECU transistor is turned ON if the vehicles door, etc. are opened without use of the key. This energizes the headlight relay to active the headlight.Checking the headlight activation circuit (Disconnect the connector of the ECU, then short-circuit terminal connector 2, and activate the headlight relay.)
