Vehicles Without Rear Spoiler

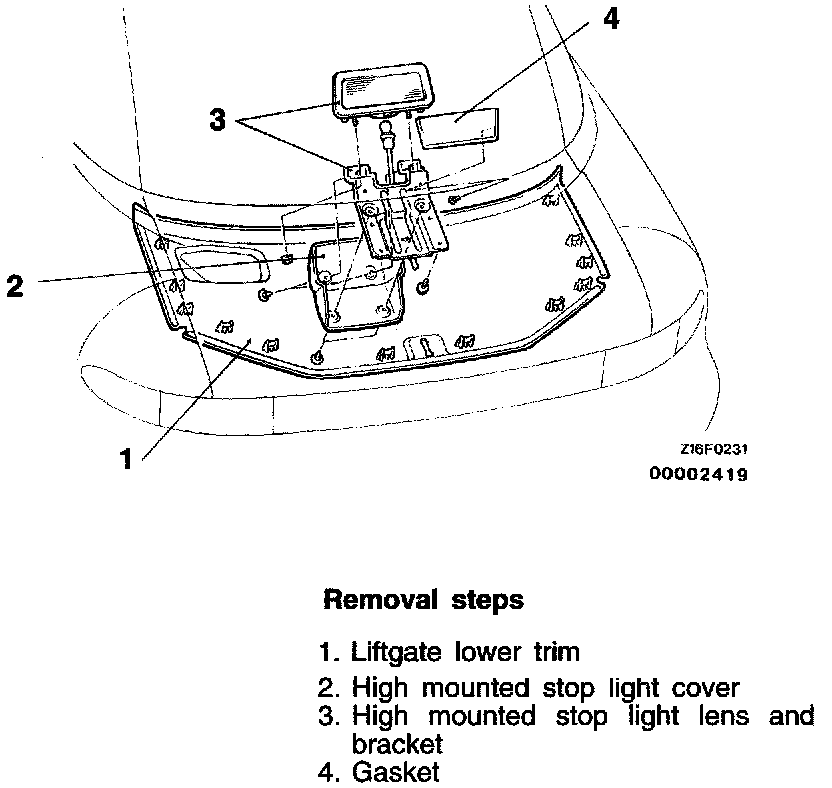

High Mounted Stop Light - Removal And Installation:





REMOVE
1. Liftgate lower trim
2. High mounted stop light cover
3. High mounted stop light lens and bracket
4. Gasket

INSTALL
1. Gasket
2. High mounted stop light lens and bracket
3. High mounted stop light cover
4. Liftgate lower trim
