Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Center Mounted Brake Lamp >> Service and Repair >> Removal and Installation Steps >> Vehicles With Rear Spoiler

Vehicles With Rear Spoiler

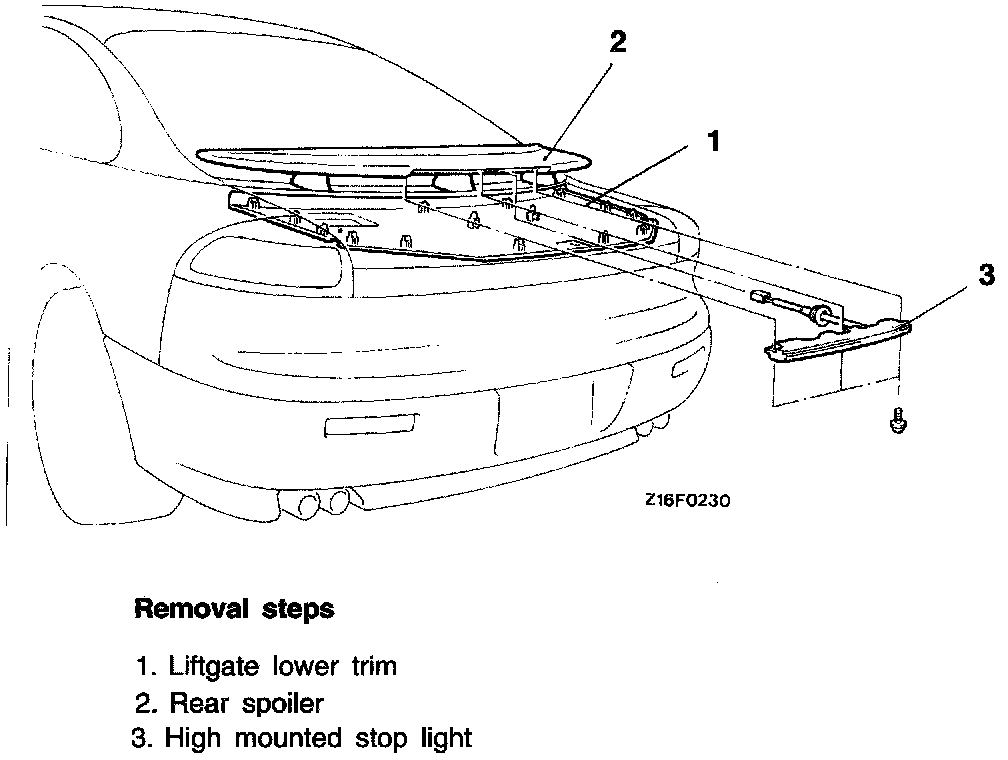

High Mounted Stop Light - Removal And Installation:





REMOVE
1. Liftgate lower trim
2. Rear spoiler
3. High mounted stop light

INSTALL
1. High mounted stop light
2. Rear spoiler
3. Liftgate lower trim
