Vehicles With Small Bumper

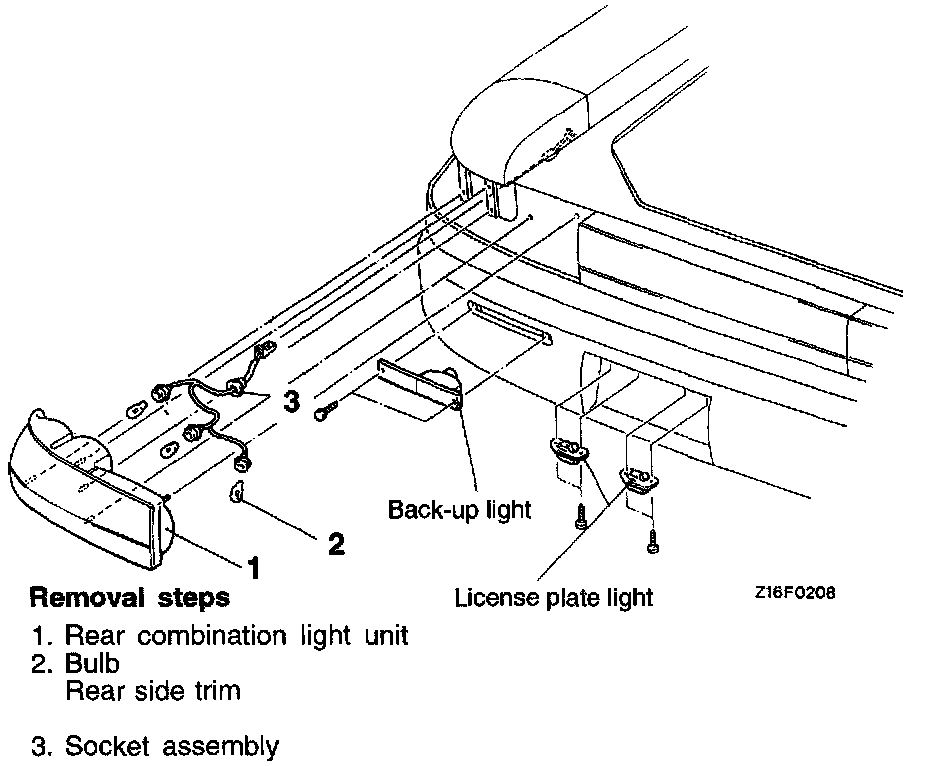

Rear Combination Light - Backup And License Plate Light - Removal And Installation:





REMOVE
1. Rear combination light unit
2. Bulb
3. Socket assembly

INSTALL
1. Socket assembly
2. Bulb
3. Rear combination light unit
