Removal And Installation Steps

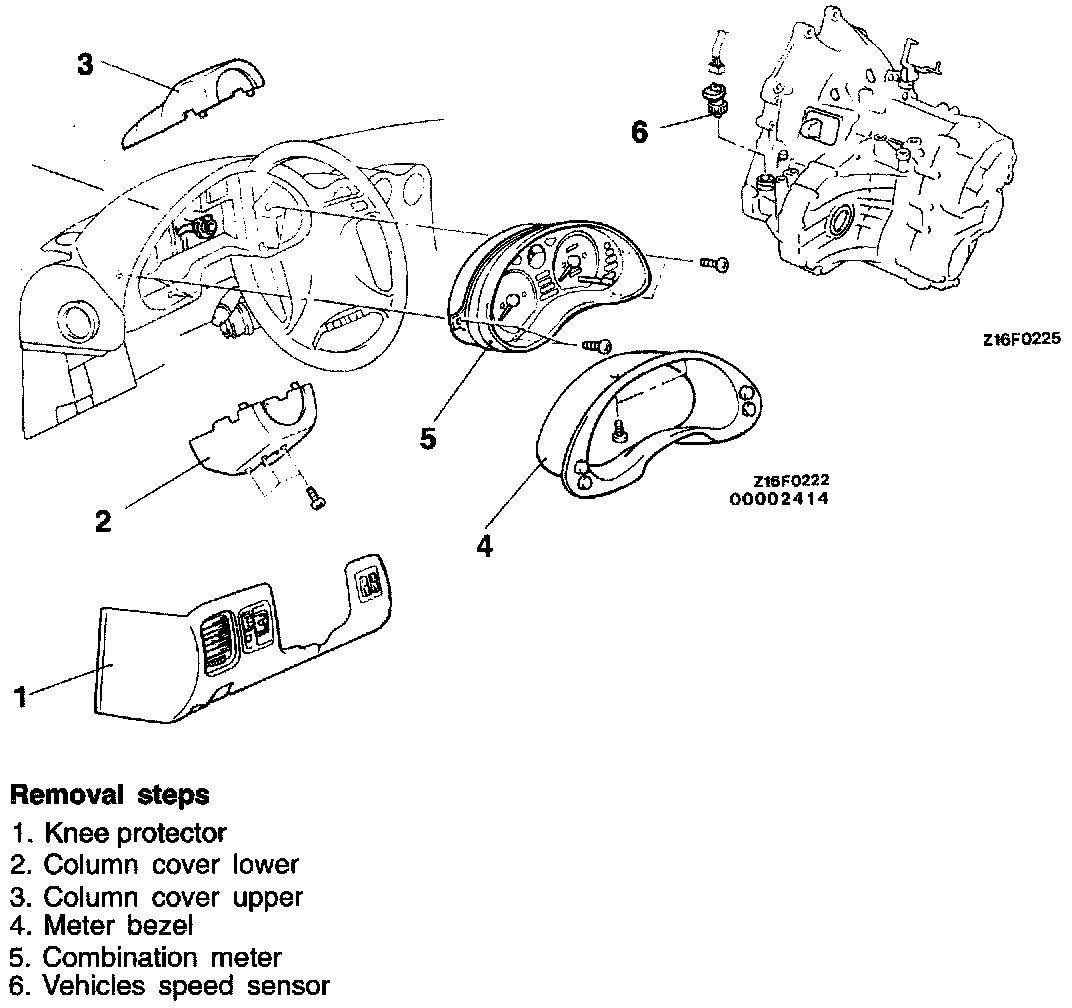

Combination Meters - Removal And Installation:

REMOVE
1. Knee protector
2. Column cover lower
3. Column cover upper
4. Meter bezel
5. Combination meter
6. Vehicles speed sensor

INSTALL
1. Vehicles speed sensor
2. Combination meter
3. Meter bezel
4. Column cover upper
5. Column cover lower
6. Knee protector
