Disassembly and Reassembly

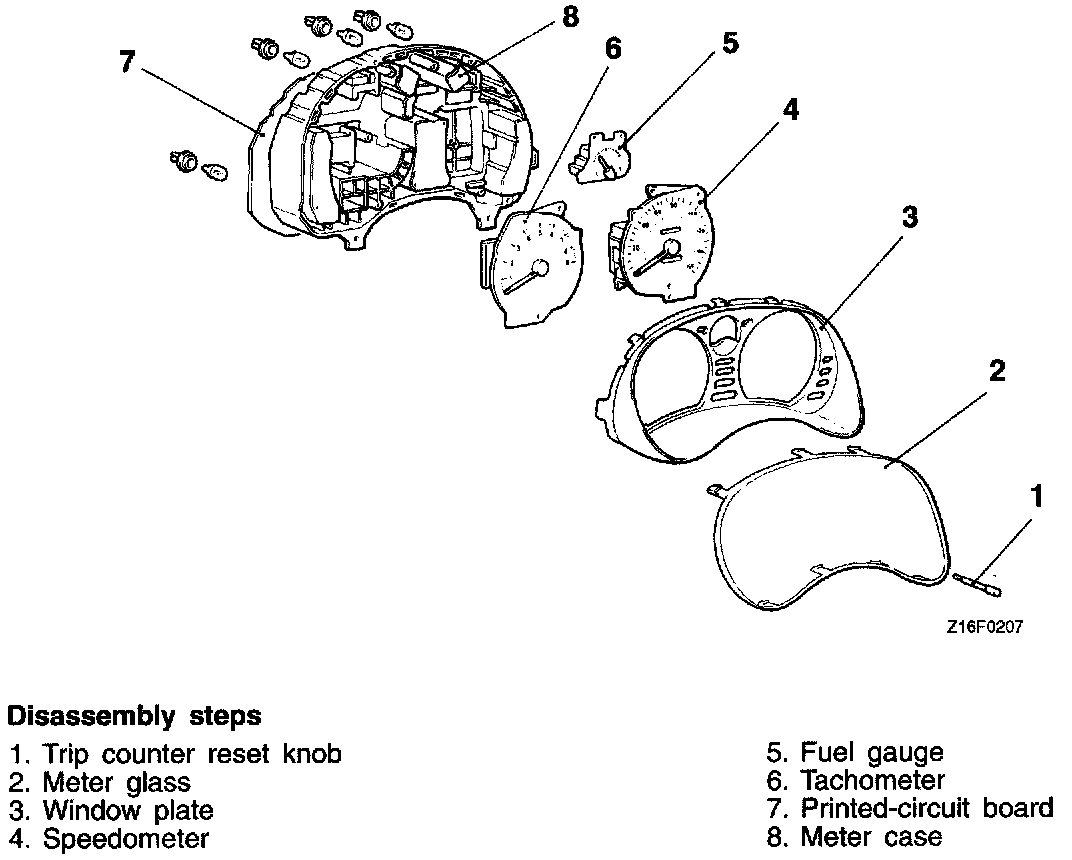

Combination Meters - Disassembly And Reassembly:

REMOVE
1. Trip counter reset knob
2. Meter glass
3. Window plate
4. Speedometer
5. Fuel gauge
6. Tachometer
7. Printed-circuit board
8. Meter case

INSTALL
1. Meter case
2. Printed-circuit board
3. Tachometer
4. Fuel gauge
5. Speedometer
6. Window plate
7. Meter glass
8. Trip counter reset knob
