Removal and Installation Steps

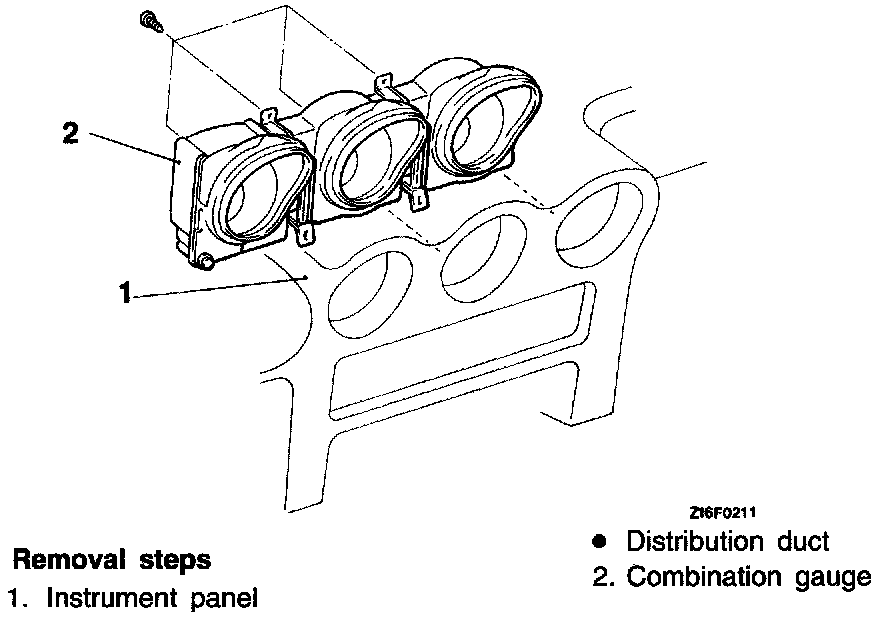

Combination Gauges - Removal And Installation:





REMOVE
1. Instrument panel
- Distribution duct
2. Combination gauge

INSTALL
1. Combination gauge
- Distribution duct
2. Instrument panel
