Disassembly and Reassembly Steps

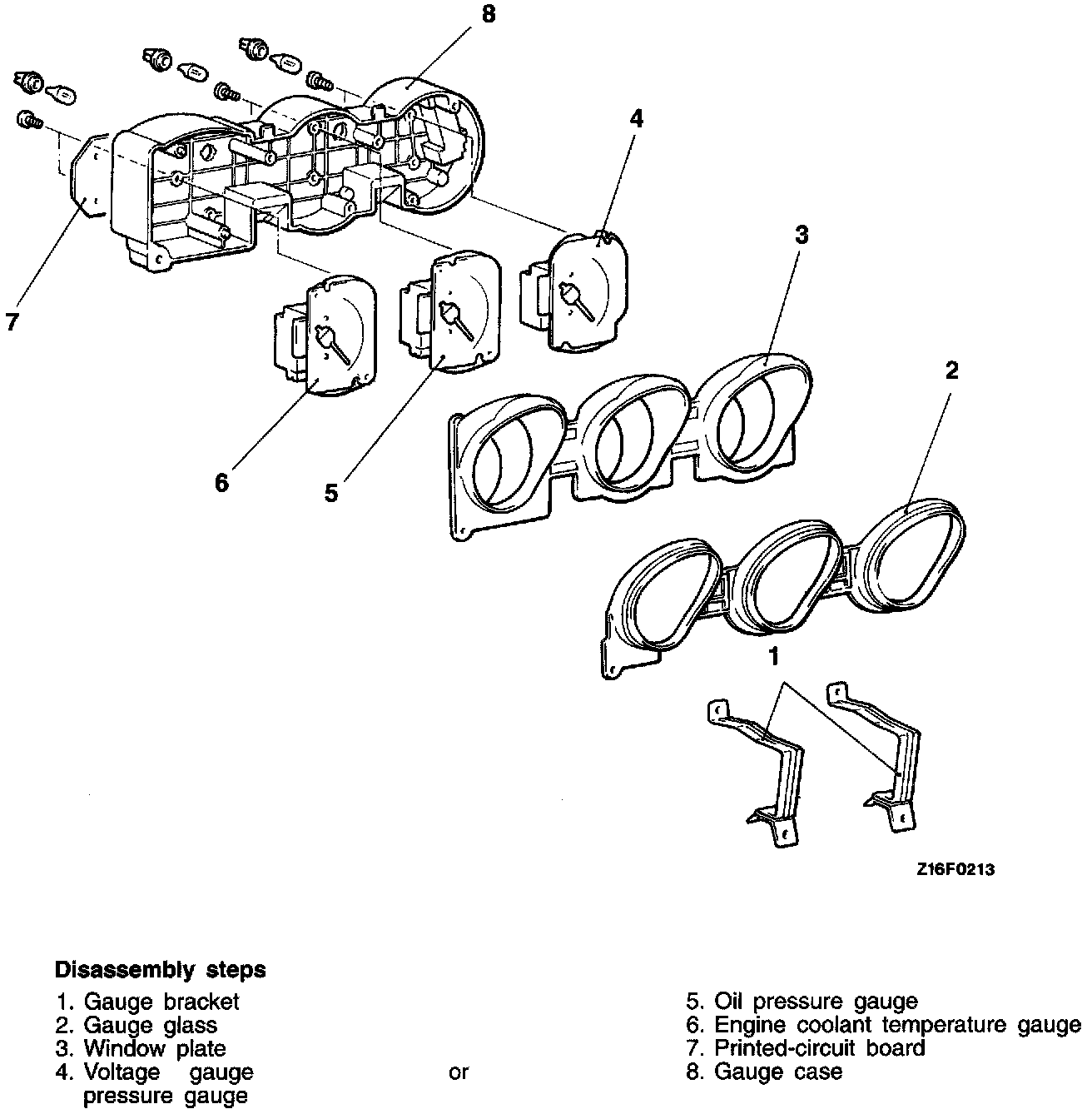

Combination Gauges - Disassembly And Reassembly:

REMOVE
1. Gauge bracket
2. Gauge glass
3. Window plate
4. Pressure gauge
5. Oil pressure gauge
6. Engine coolant temperature gauge
7. Printed-circuit board
8. Gauge case

INSTALL
1. Gauge case
2. Printed-circuit board
3. Engine coolant temperature gauge
4. Oil pressure gauge
5. Pressure gauge
6. Window plate
7. Gauge glass
8. Gauge bracket
