Cigarette Lighter: Service and Repair

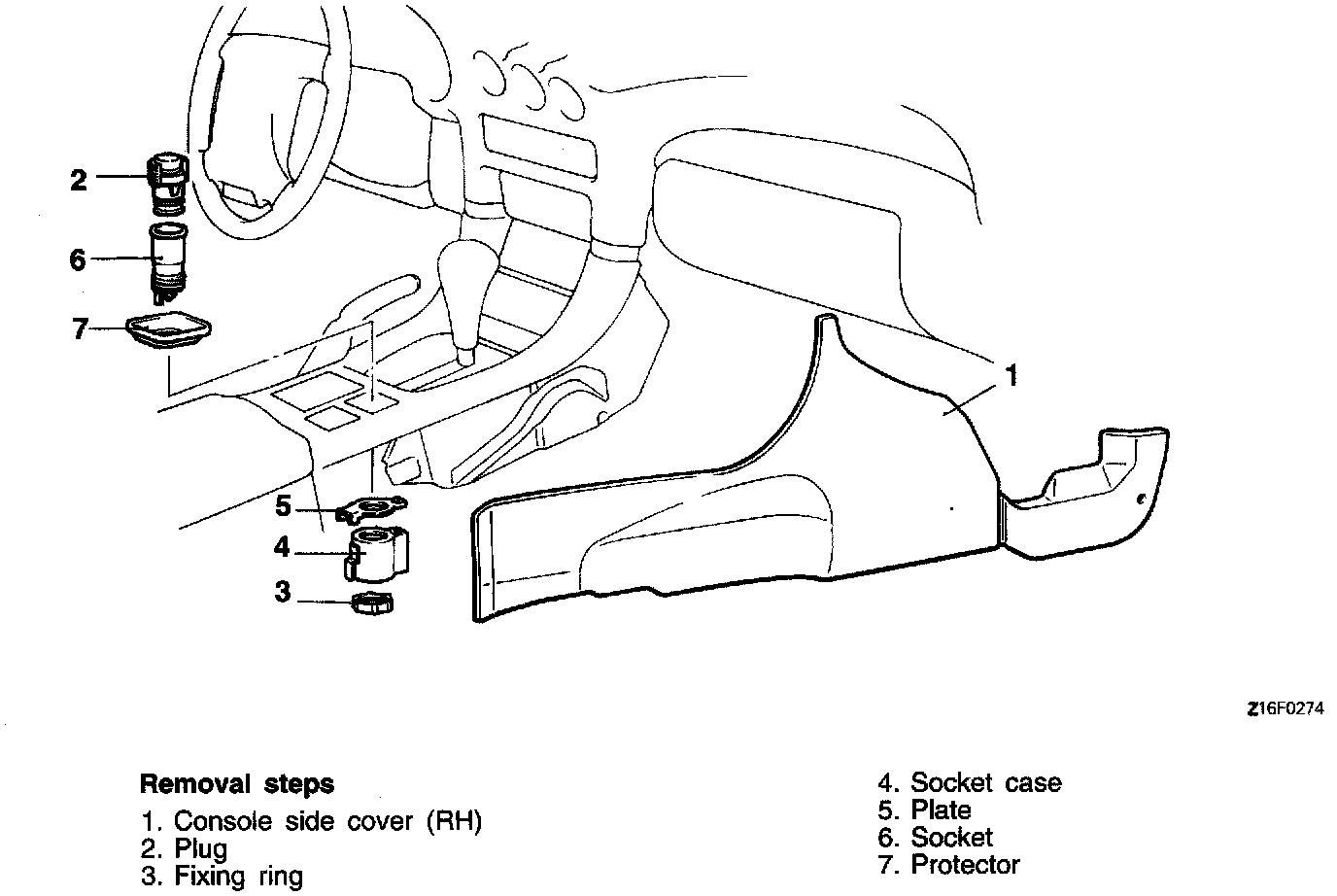

Cigarette Lighter - Removal And Installation:

REMOVE
1. Console Side Cover (RH)
2. Plug
3. Fixing ring
4. Socket Case
5. Plate
6. Socket
7. Protector

INSTALL
1. Protector
2. Socket
3. Plate
4. Socket Case
5. Fixing ring
6. Plug
7. Console Side Cover (RH)
