Water Temperature Sensor Circuit

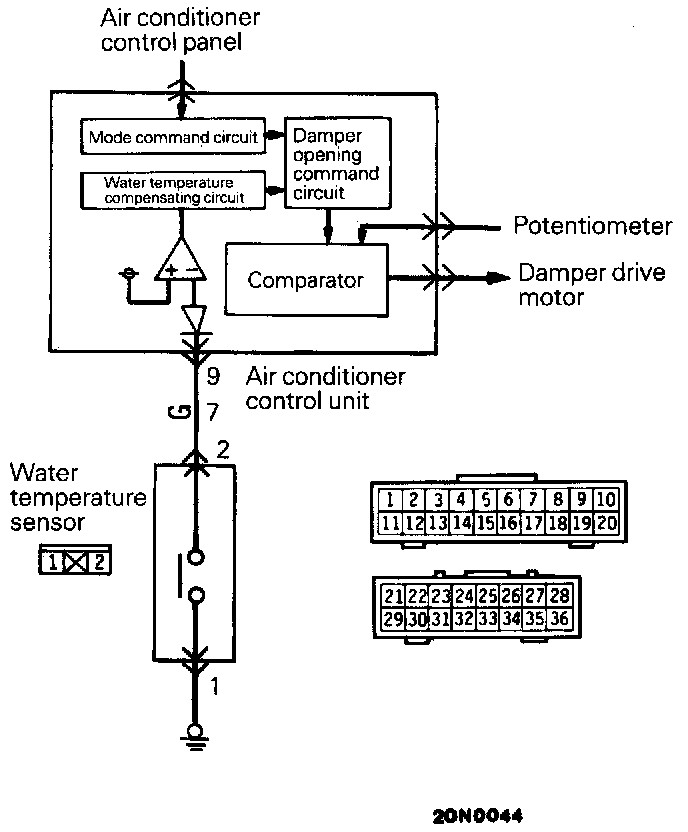

Inspection of Water Temperature Sensor Circuit

Troubleshooting Hints

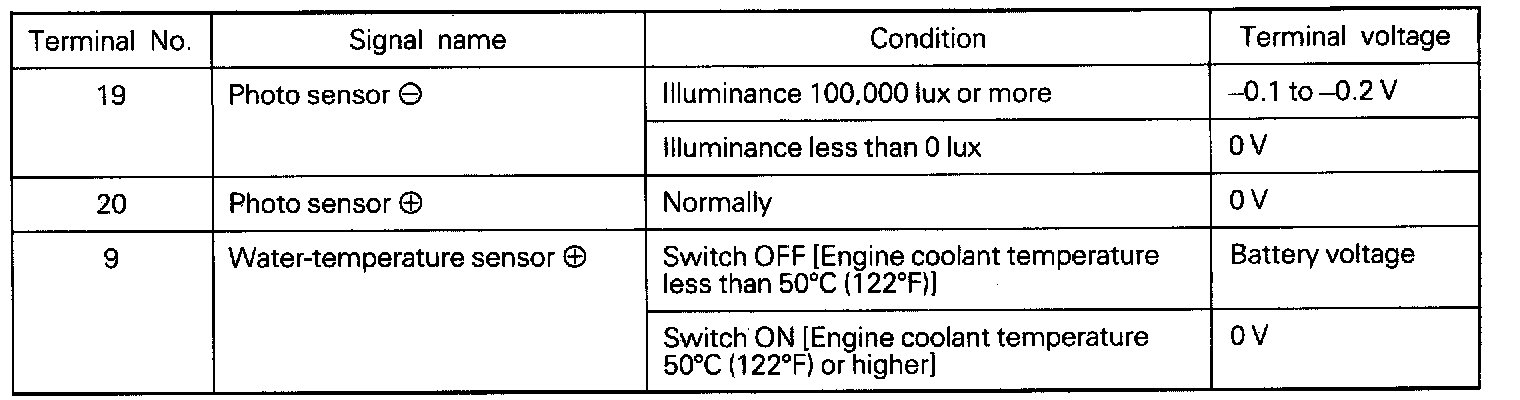

Air conditioner control unit terminal voltages
