Inside/Outside Selector Damper Motor Circuit

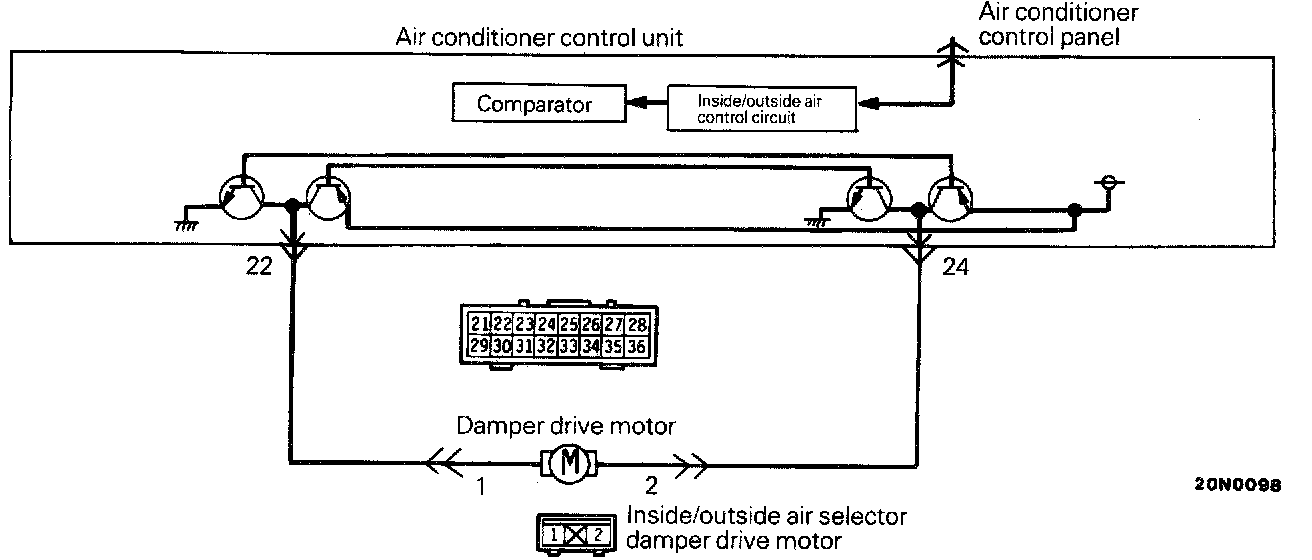

Inside/Outside Air Selector Damper Drive Motor Circuit

Troubleshooting Hints

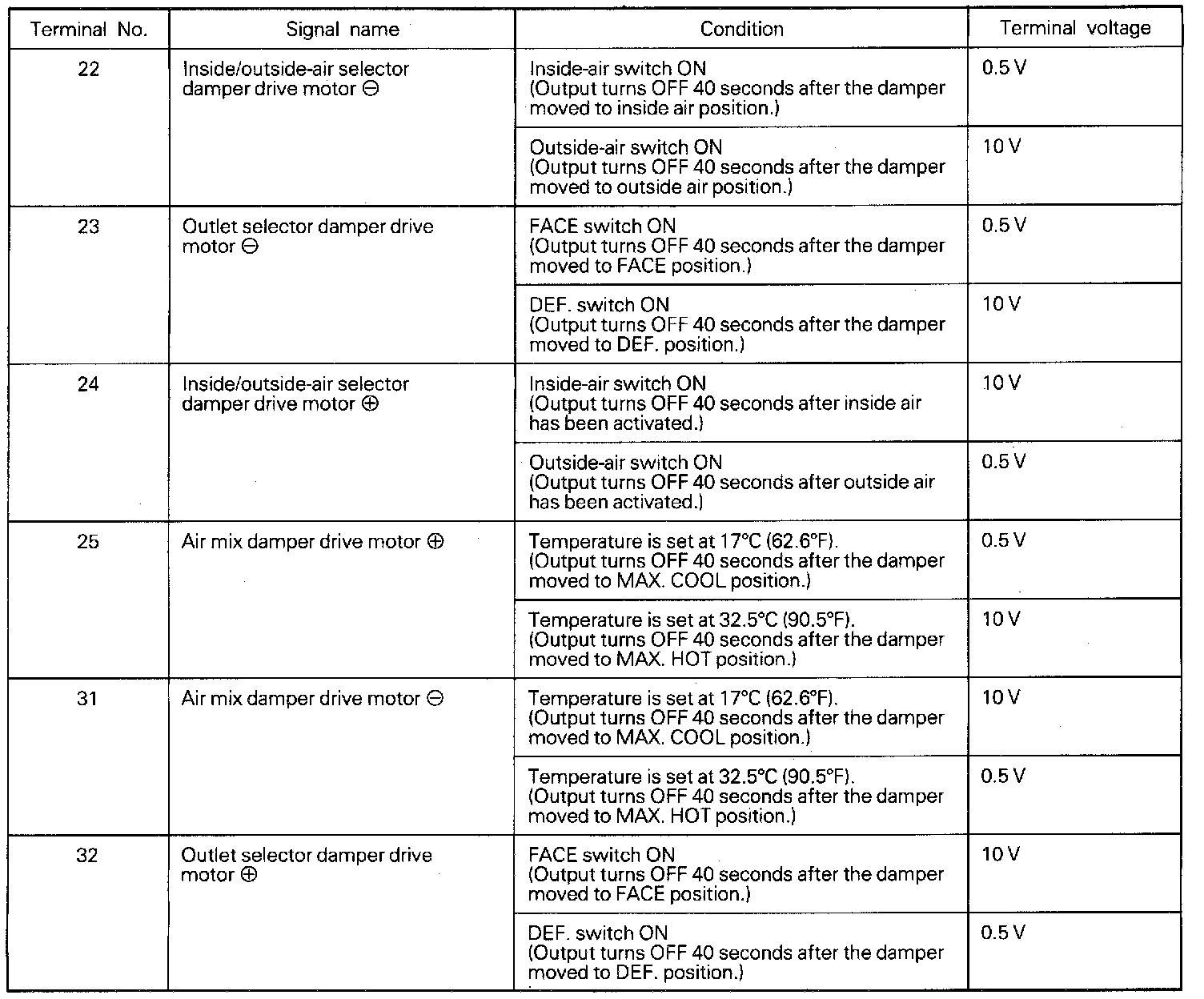

Air conditioner control unit terminal voltages
