Air Conditioner Control Unit Power Circuit

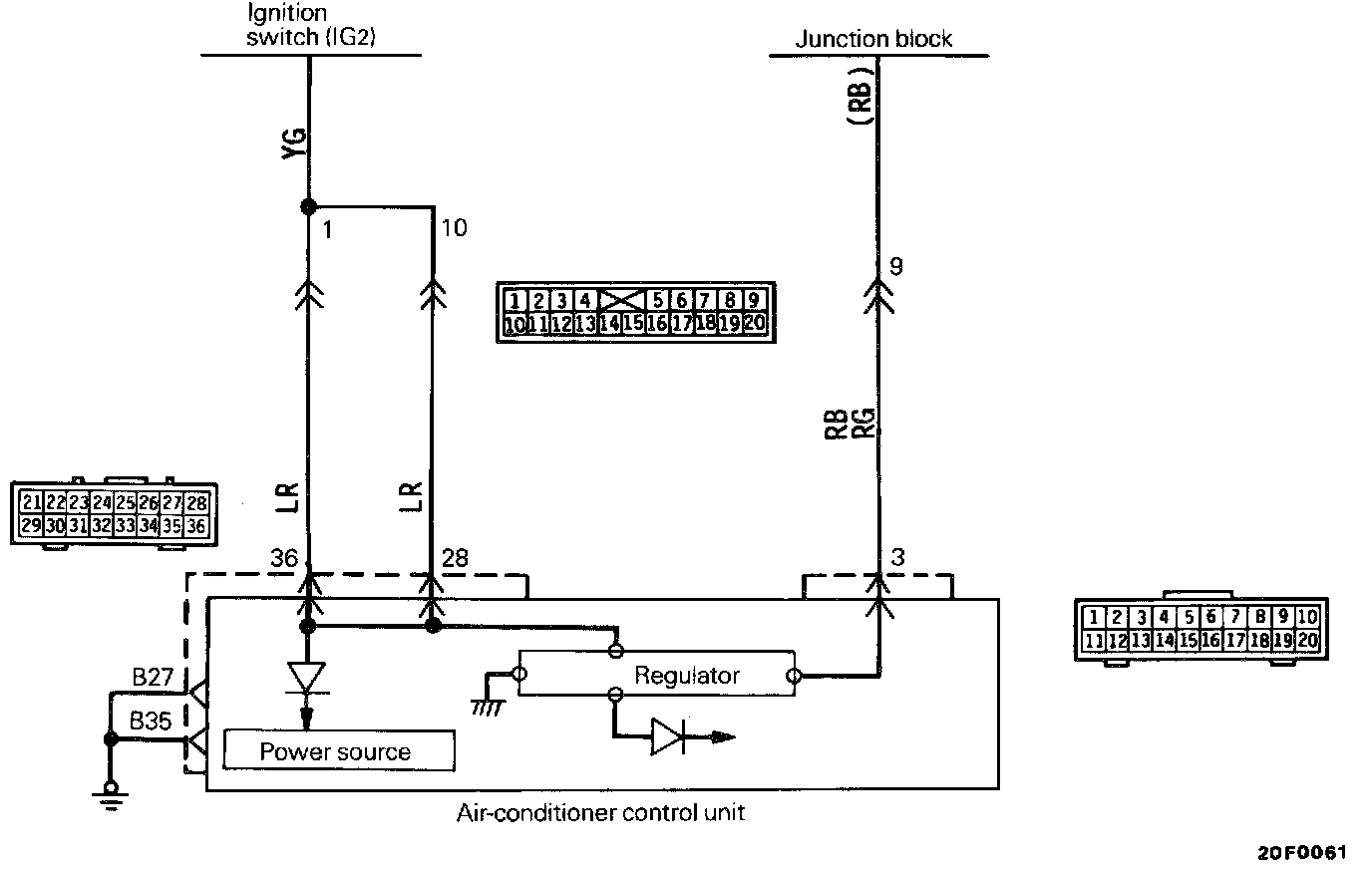

Inspection of air conditioner control unit power source circuit

Troubleshooting Hints

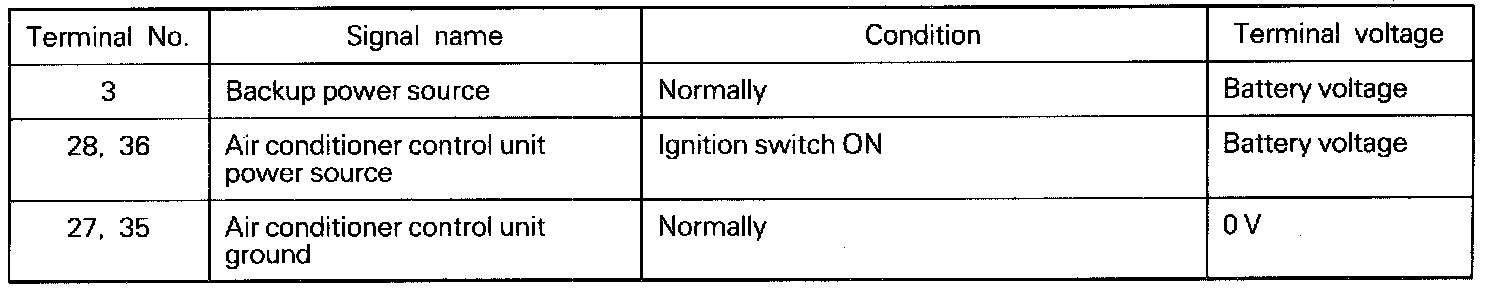

Air conditioner control unit terminal voltage
