Manual A/C

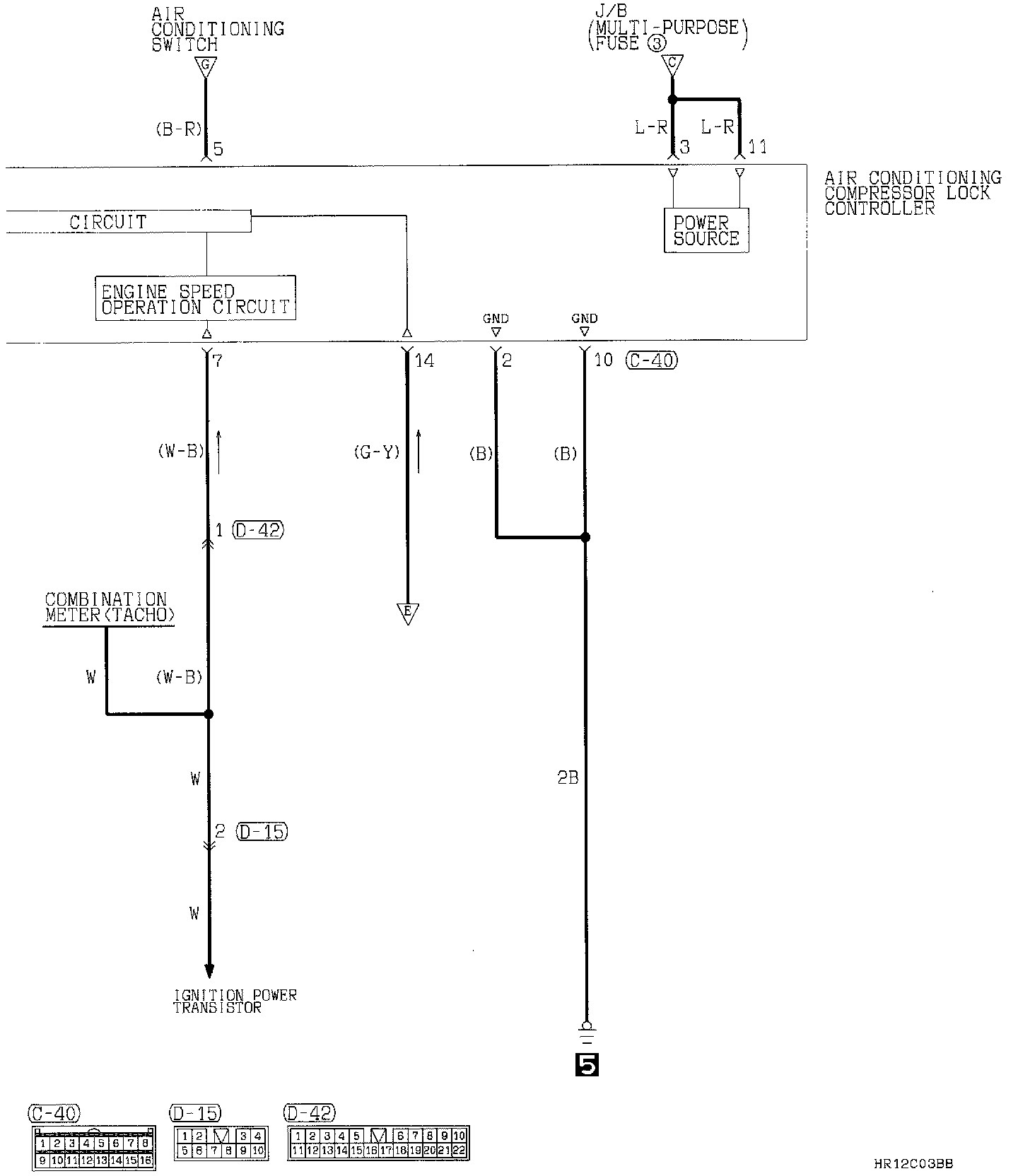

Manual Air Conditioning Circuit (Part 1 Of 6):

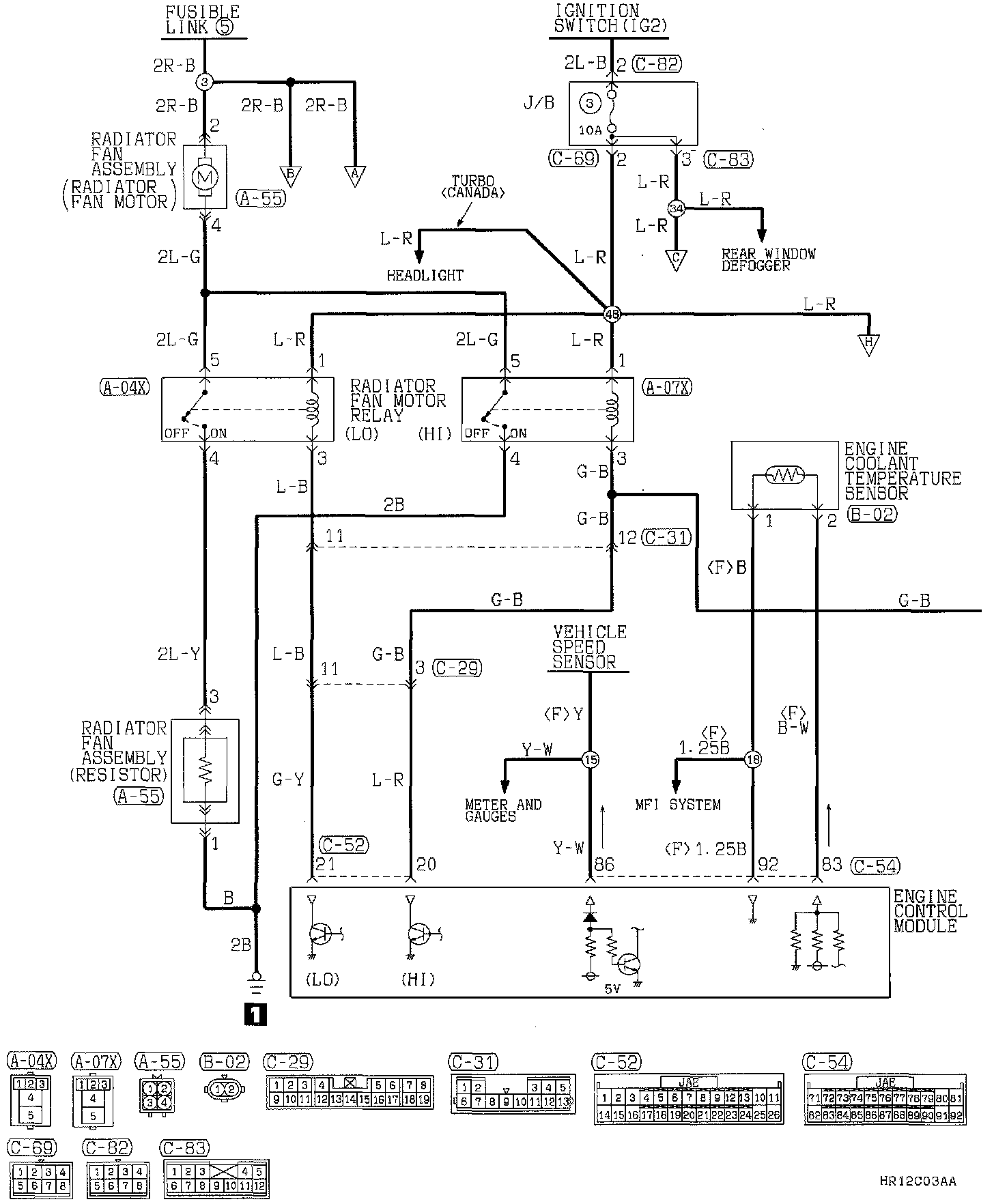

Manual Air Conditioning Circuit (Part 2 Of 6):

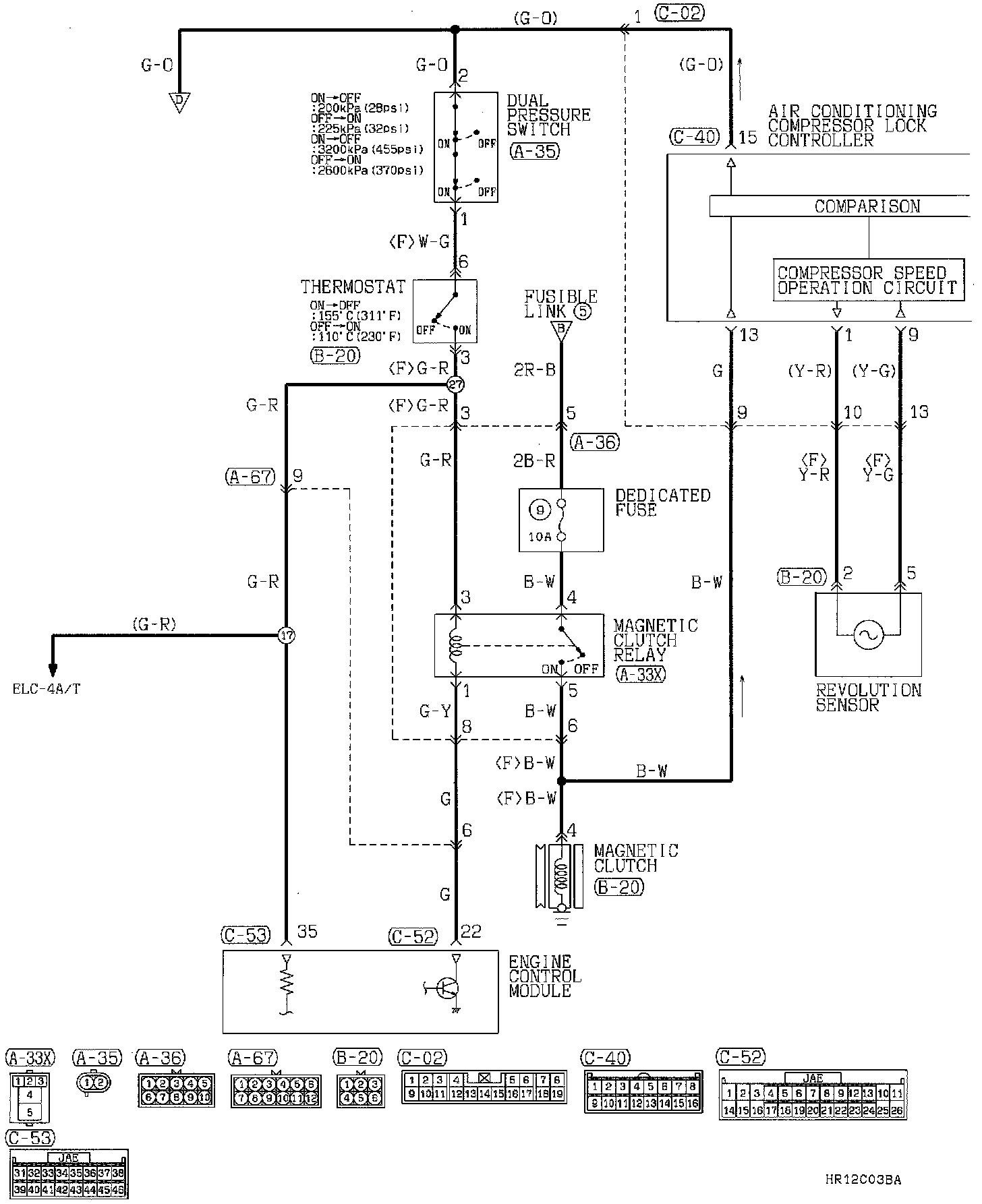

Manual Air Conditioning Circuit (Part 3 Of 6):

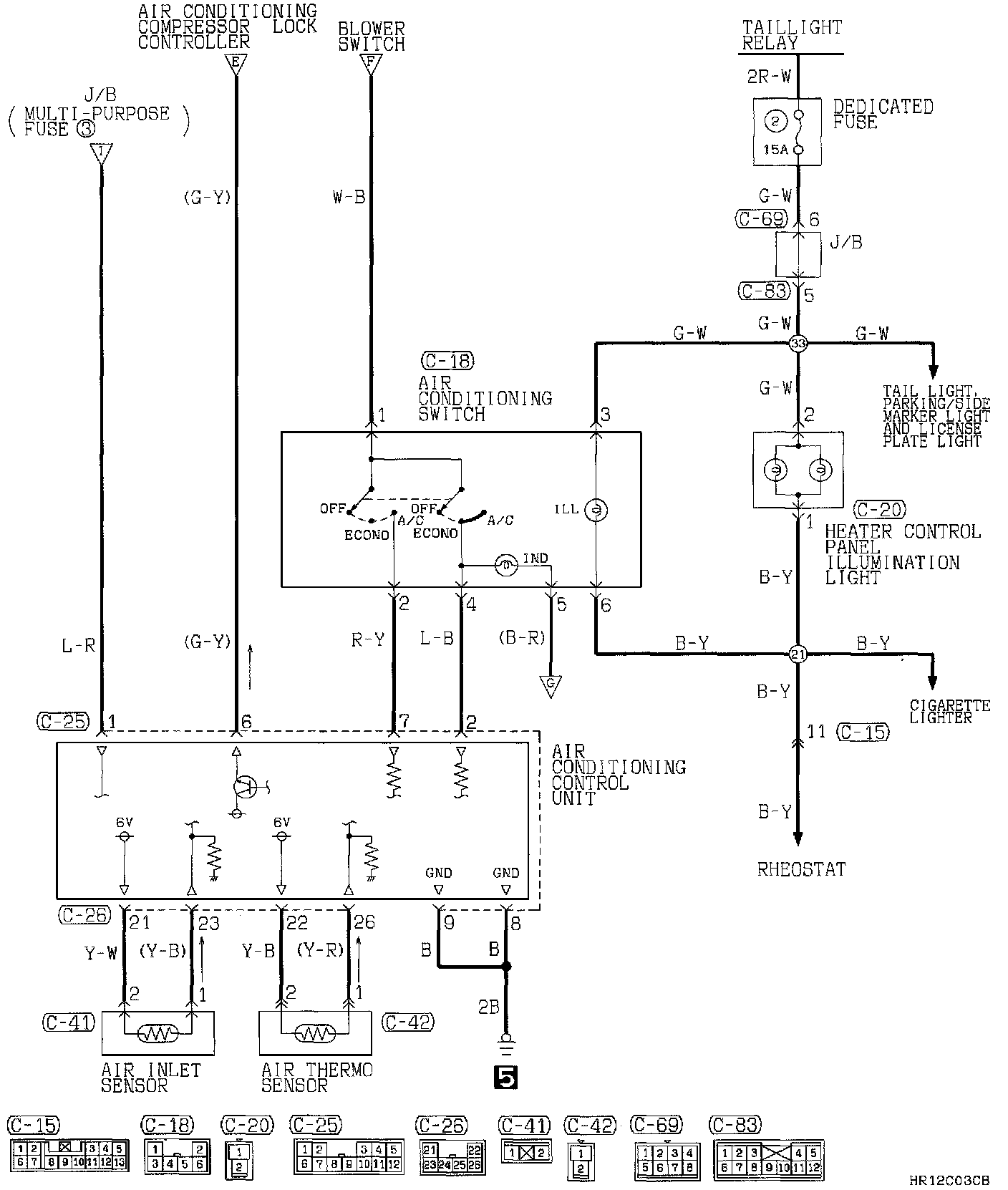

Manual Air Conditioning Circuit (Part 4 Of 6):




Manual Air Conditioning Circuit (Part 5 Of 6):




Manual Air Conditioning Circuit (Part 6 Of 6):
