Diagnostic Connector - Fuel Pump: Description and Operation

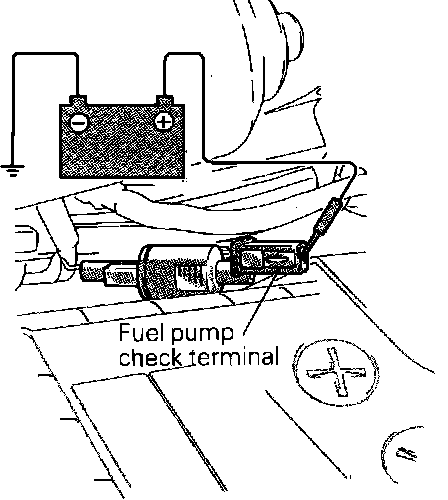

Fuel Pump Check Connector, Hooked-up:

PURPOSE
The Fuel Pump Check Connector is used to check the voltage being supplied to the fuel pump. It is also used to apply voltage to the fuel pump (when key is "OFF") to check operation.
