Engine Roll Stopper

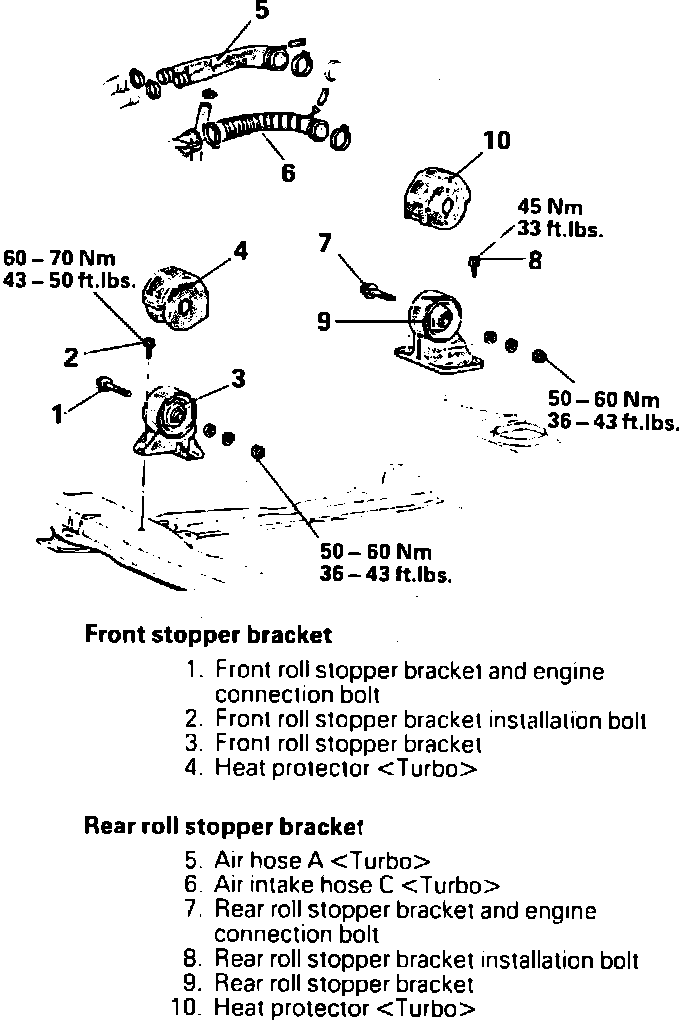

Fig. 5 Engine Roll Stopper Replacement:

FRONT

1. Remove A/C condenser cooling fan assembly.
2. Remove left catalytic converter.
3. Remove front engine roll stopper in order shown in Fig. 5.
4. Reverse procedure to install.

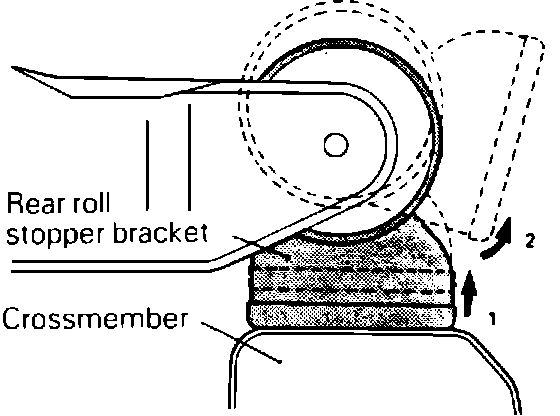

Fig. 6 Rear Roll Stopper Mount Installation:

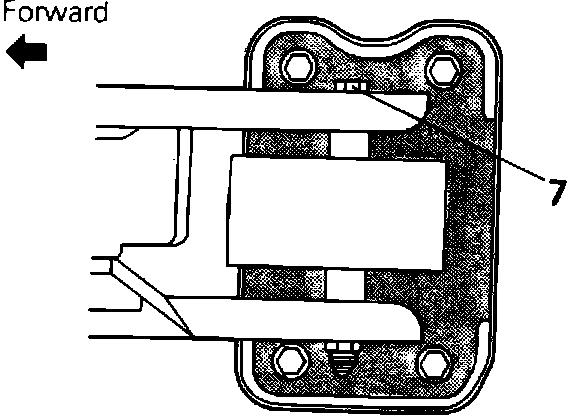

Fig. 7 Rear Roll Stopper Mount Bolt Installation:

REAR

1. Remove A/C condenser cooling fan assembly.
2. Remove left catalytic converter.
3. Remove rear roll stopper in order shown in Fig. 5, noting the following:
a. Slightly raise rear roll stopper bracket while turning roll stopper as shown in Fig. 6.
4. Reverse procedure to install, noting the following:
a. Install rear roll stopper bracket as shown in Fig. 6.
b. Install through bolt as shown in Fig. 7.
