Engine Mount

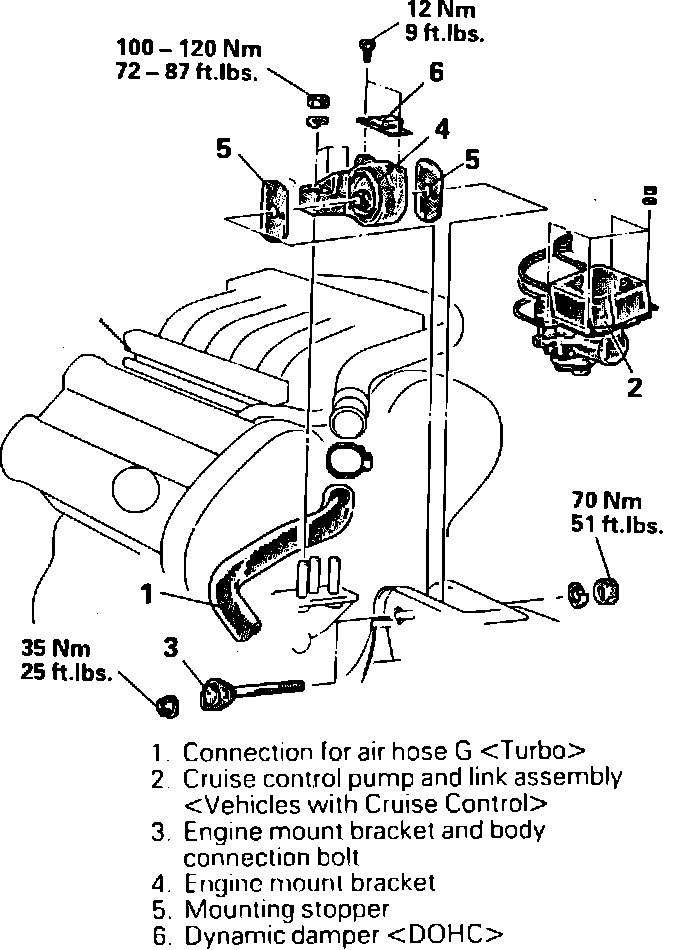

Fig. 1 Engine Mount Replacement:

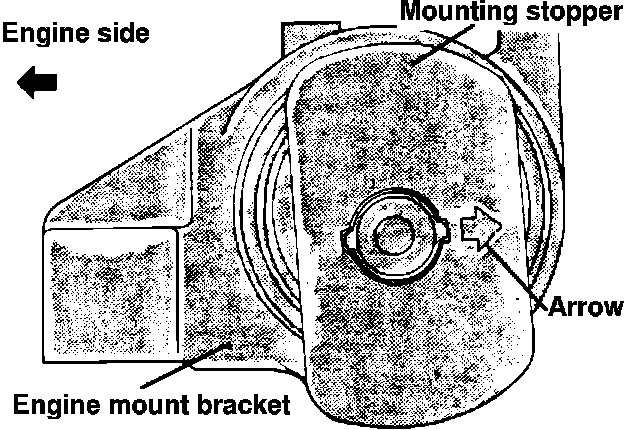

Fig. 2 Installing Engine Mount:

1. Raise and support engine using suitable support tool.
2. Remove engine mount in order shown in Fig. 1, noting the following:
a. Remove actuator and position aside.
3. Reverse procedure to install, noting the following:
a. When installing engine mounting bracket, align arrow on mounting stopper as shown in Fig. 2.
