Water Pump: Service and Repair

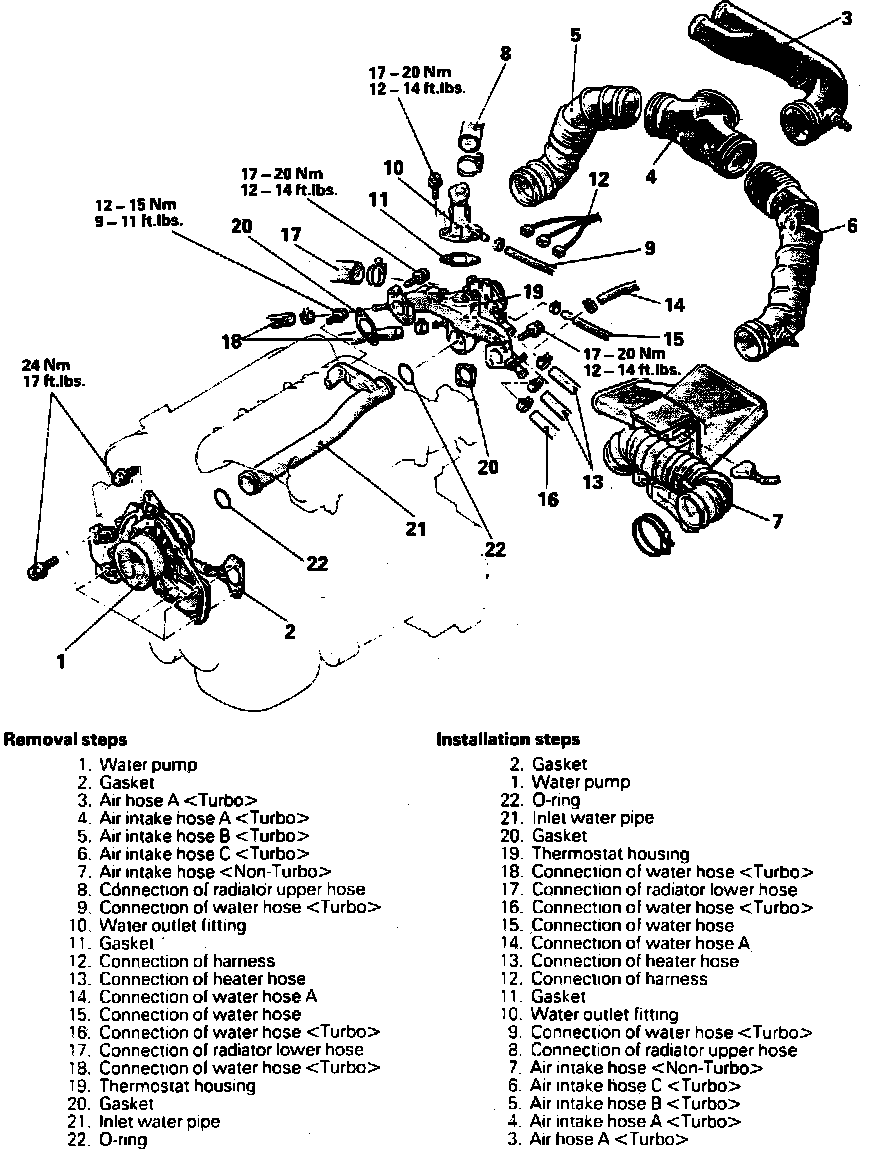

Fig. 73 Water Pump Replacement. DOHC:

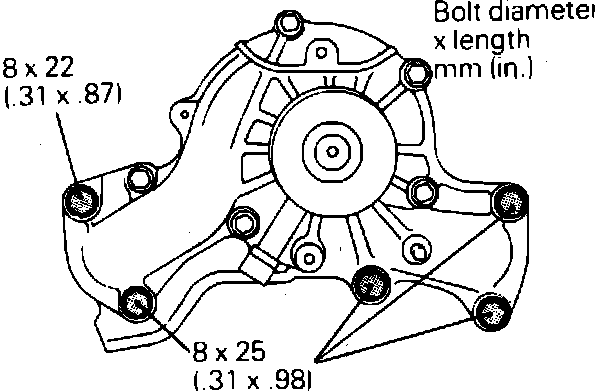

Fig. 74 Water Pump Bolts Installation. DOHC:

1. Drain engine cooling system.
2. Remove power transistor assembly.
3. Remove timing belt, refer to TIMING BELT.
4. Replace water pump in sequence shown in Fig. 73, noting the following:
a. Install water pump bolts as shown in Fig. 74.
b. Replace O-ring at both ends of water inlet pipe and coat new O-rings with water to aid in installation.
