Condenser Fan Motor Test

1. Disconnect condenser fan motor electrical connectors.

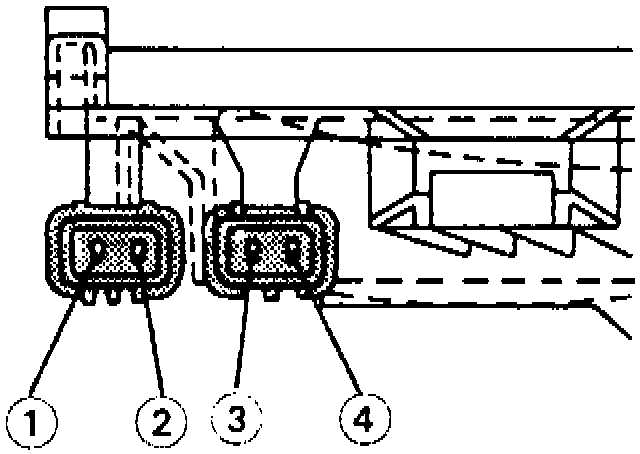

Condenser Fan Motor Terminal Identification.:

2. Apply battery voltage to terminal 3 and ground terminal 4. Condenser fan motor should operate.
3. Apply battery voltage to terminal 1 and ground terminal 2. Condenser fan motor should not operate.
4. If motor does not operate as described, replace motor.
