Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Lamps and Indicators - Cooling System
>>
Temperature Gauge
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Simple Inspection
Simple Inspection

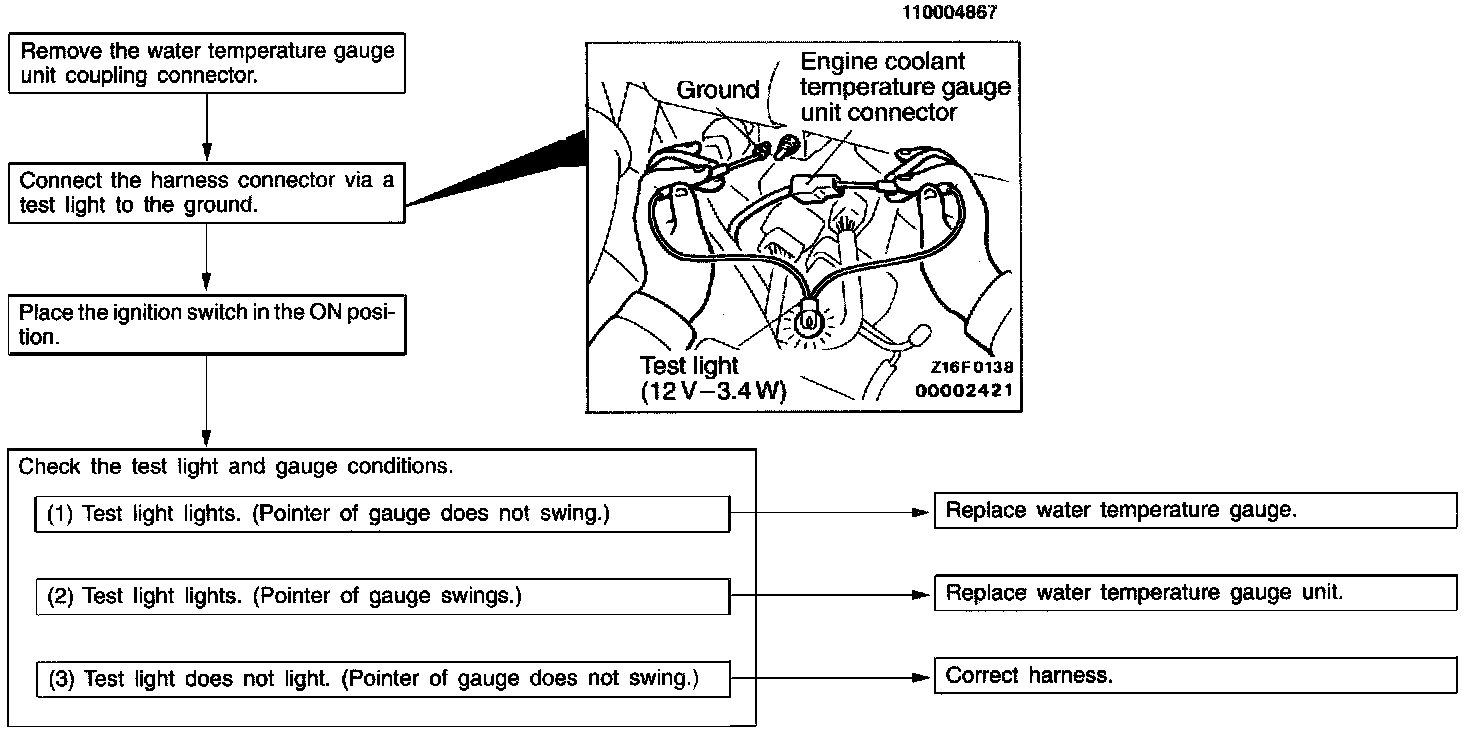

Engine Coolant Temperature Gauge Simple Inspection:
