D Connectors - Instrument Panel and Floor Console Harness

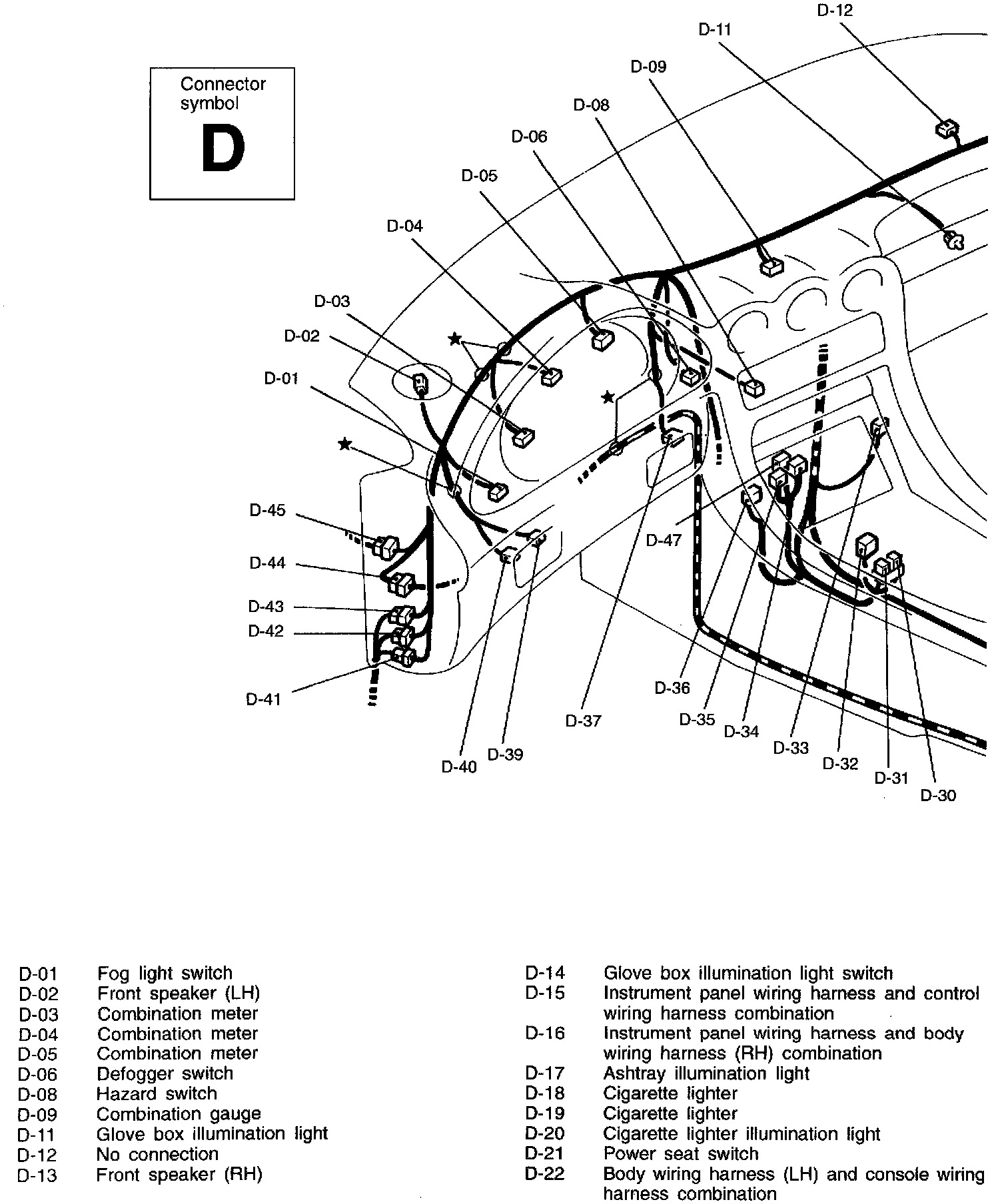

D Connectors - Instrument Panel And Floor Console (Part 1 Of 2):

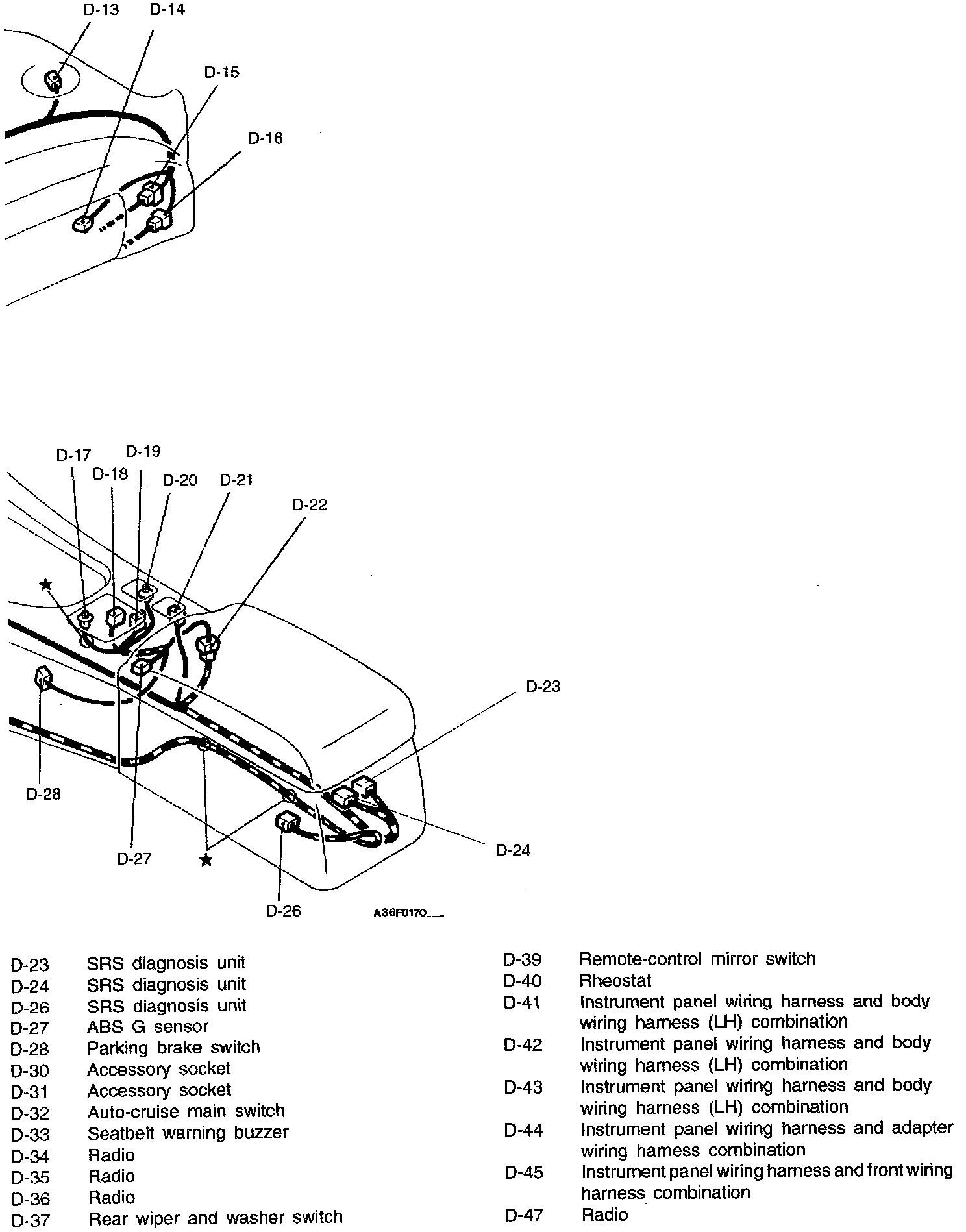

D Connectors - Instrument Panel And Floor Console (Part 2 Of 2):
