Turn Signal Lamp
>>
Turn Signal, Hazard Warning and Stop Light
Turn Signal, Hazard Warning and Stop Light

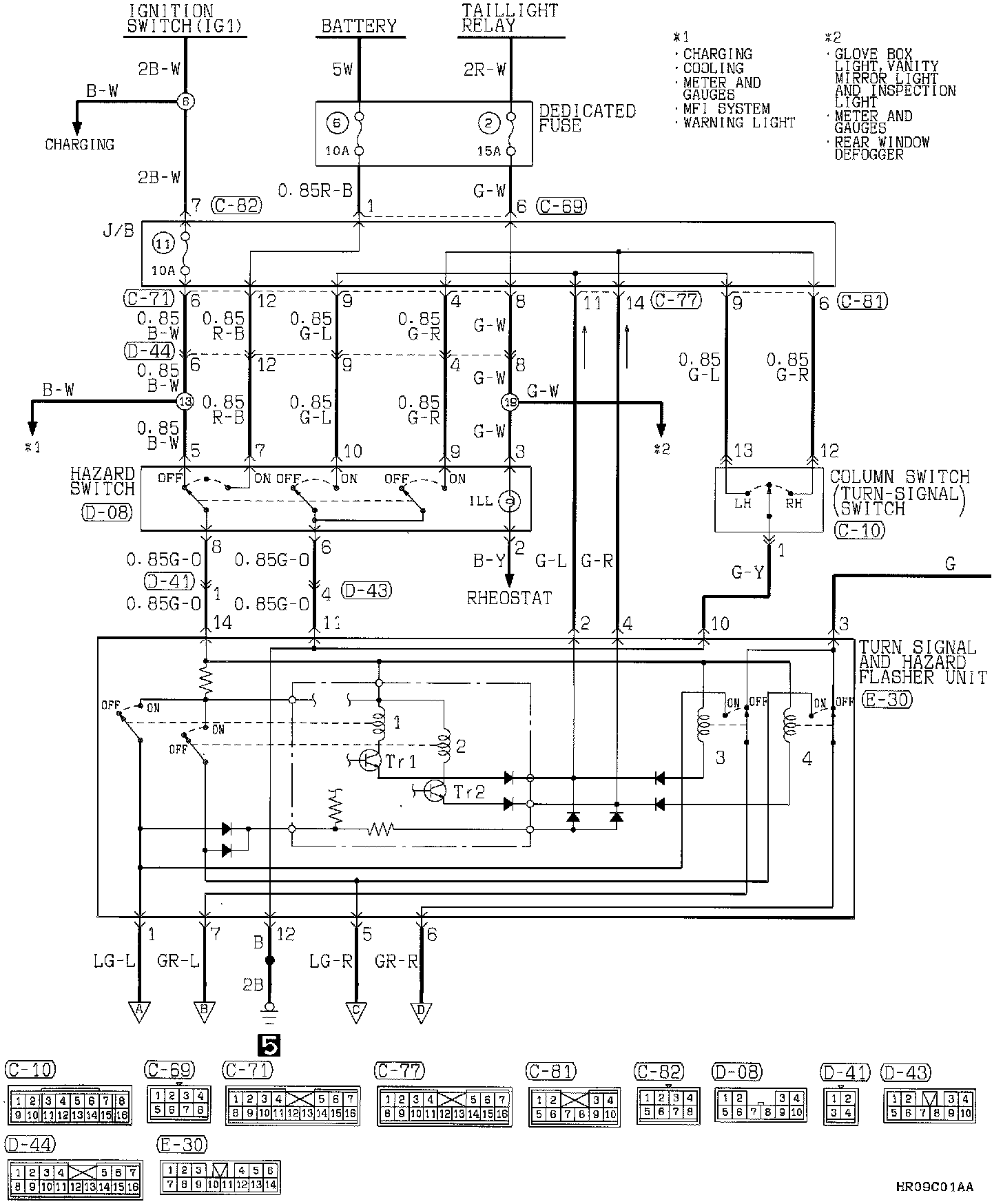

Turn Signal, Stop And Hazard Light Circuit w/Large Bumper (Part 1 Of 2):

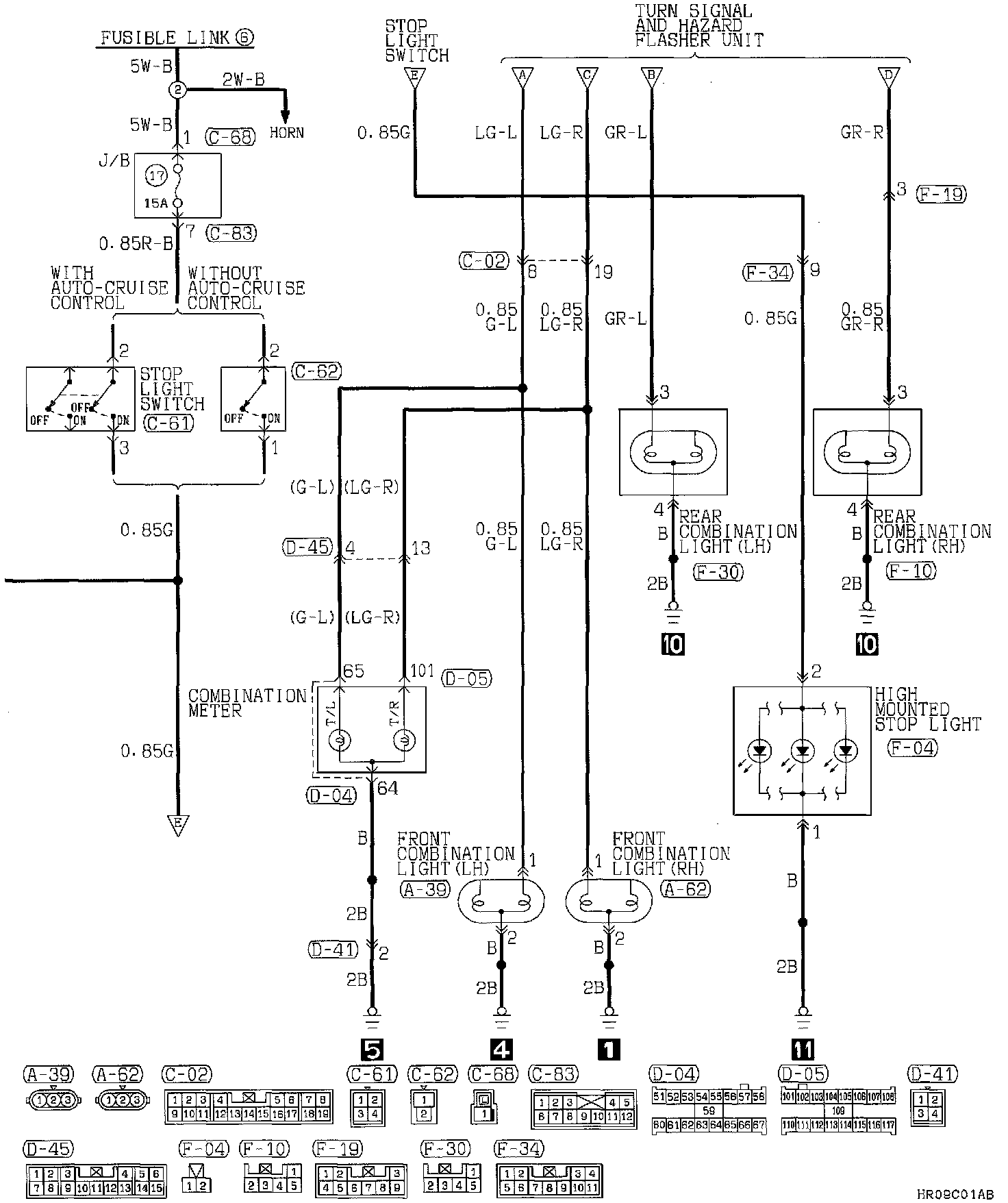

Turn Signal, Stop And Hazard Light Circuit w/Large Bumper (Part 2 Of 2):
