Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signal Lamp
>>
Turn Signal and Hazard Warning Light
Turn Signal and Hazard Warning Light

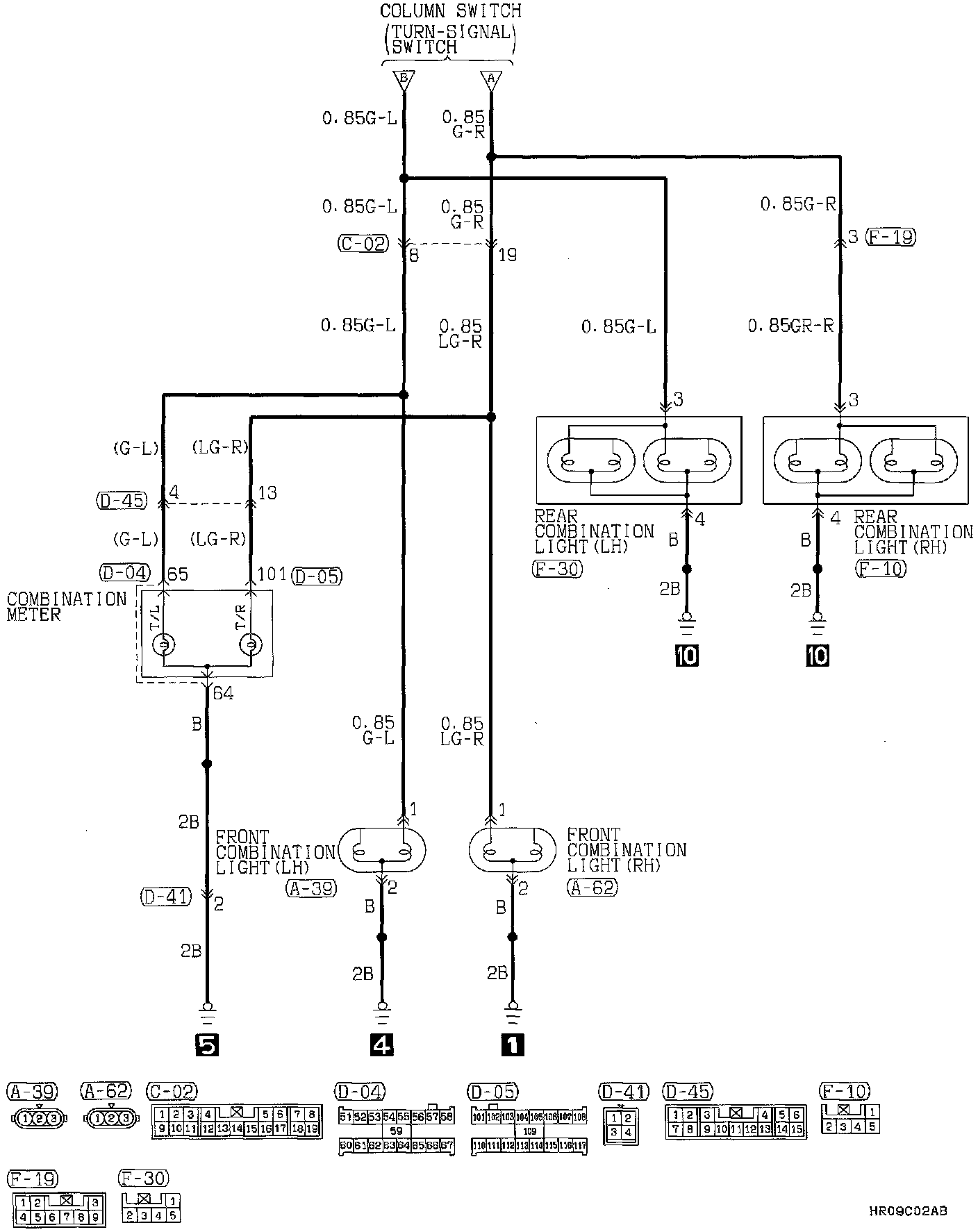

Turn Signal And Hazard Light Circuit w/Small Bumper (Part 1 Of 2):

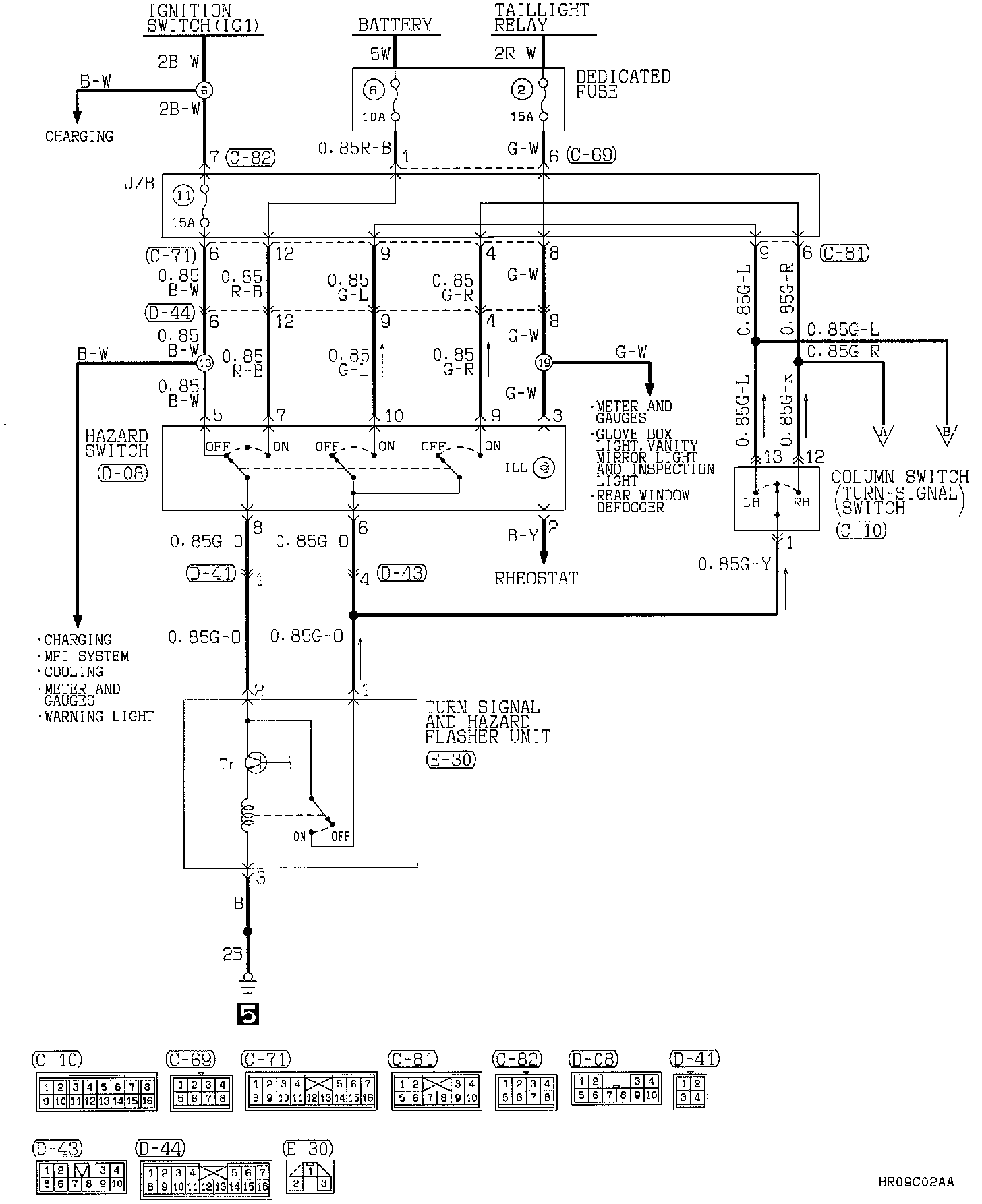

Turn Signal And Hazard Light Circuit w/Small Bumper (Part 2 Of 2):
