Wire Color Codes

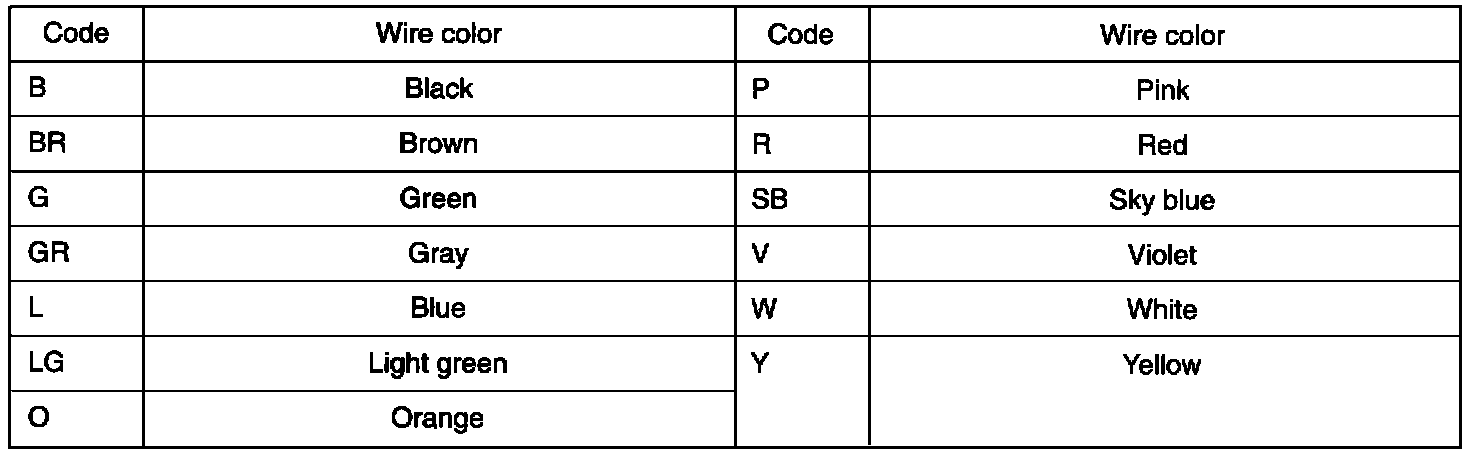

Wire Color Codes:

If a cable has two colors, the first of the two color code characters indicates the basic color (color of cable coating) and the second indicates the marking color.

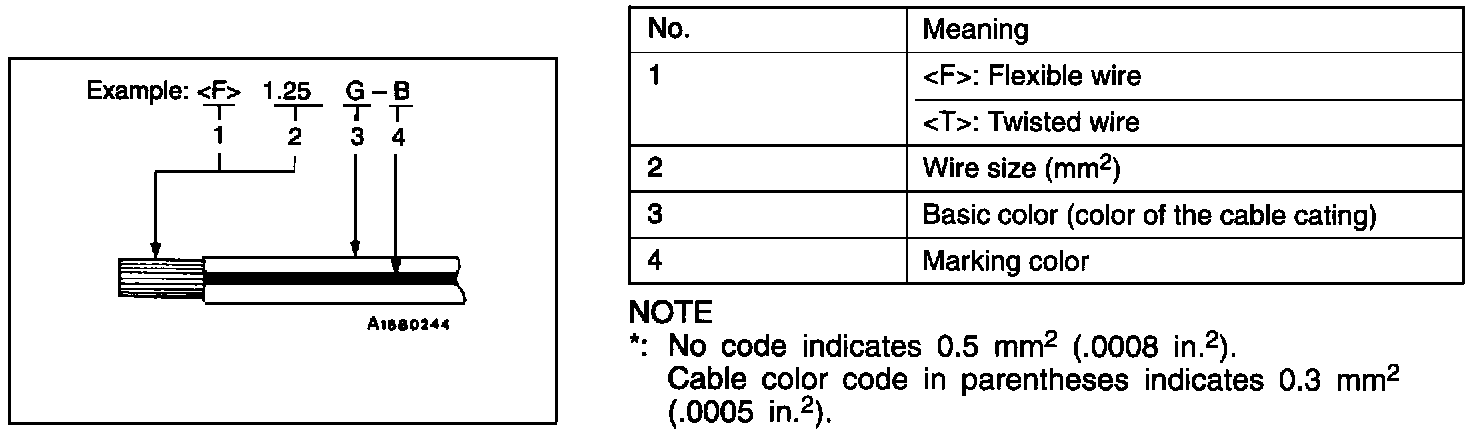

Examples For Wire Color Codes:

Example for a Wire Color COde.
