Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Vehicle Connector Locations
>>
B Connectors - Engine and Transaxle Harness
>>
Manual Transmission
Manual Transmission

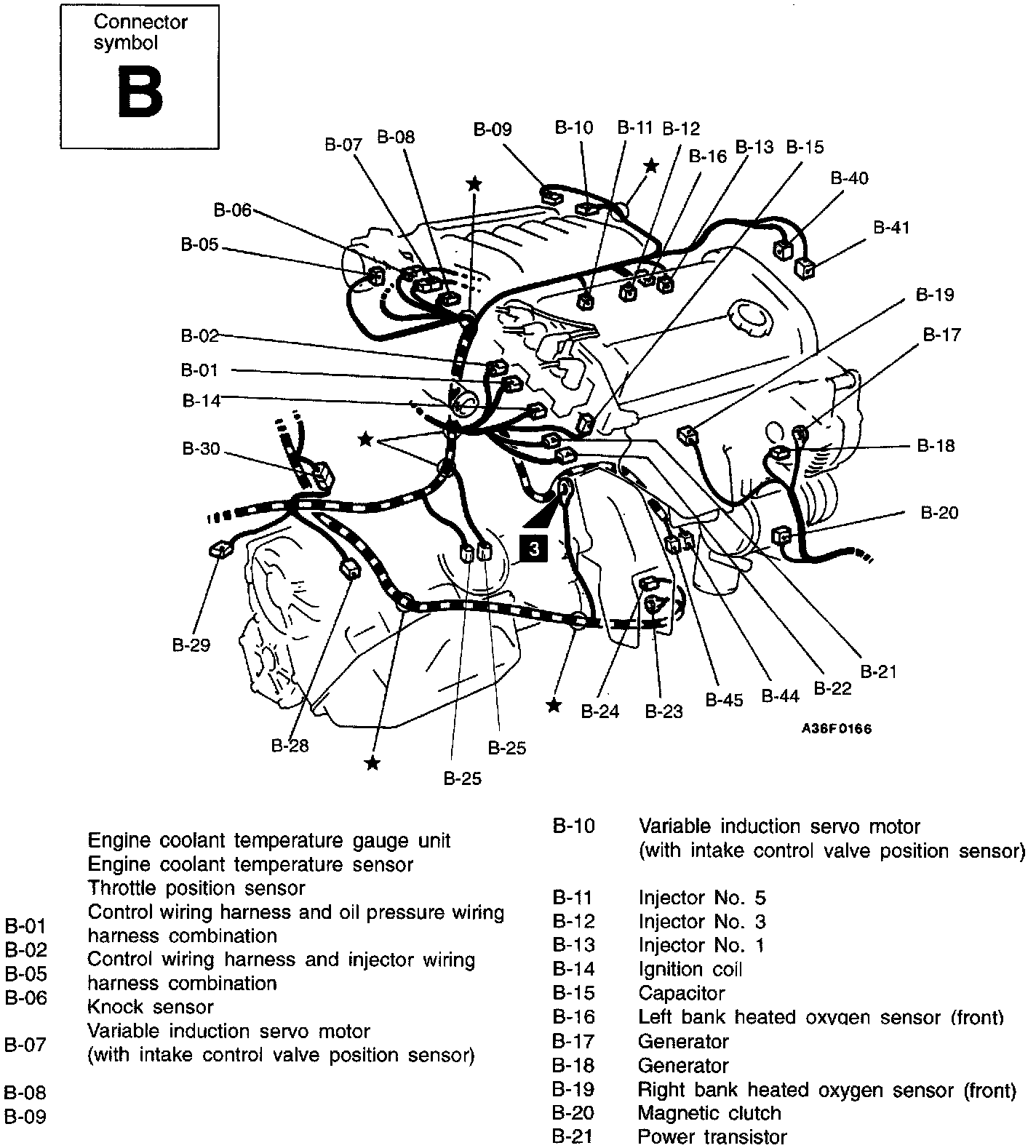

B Connectors - Engine And Transaxle (Part 1 Of 2):

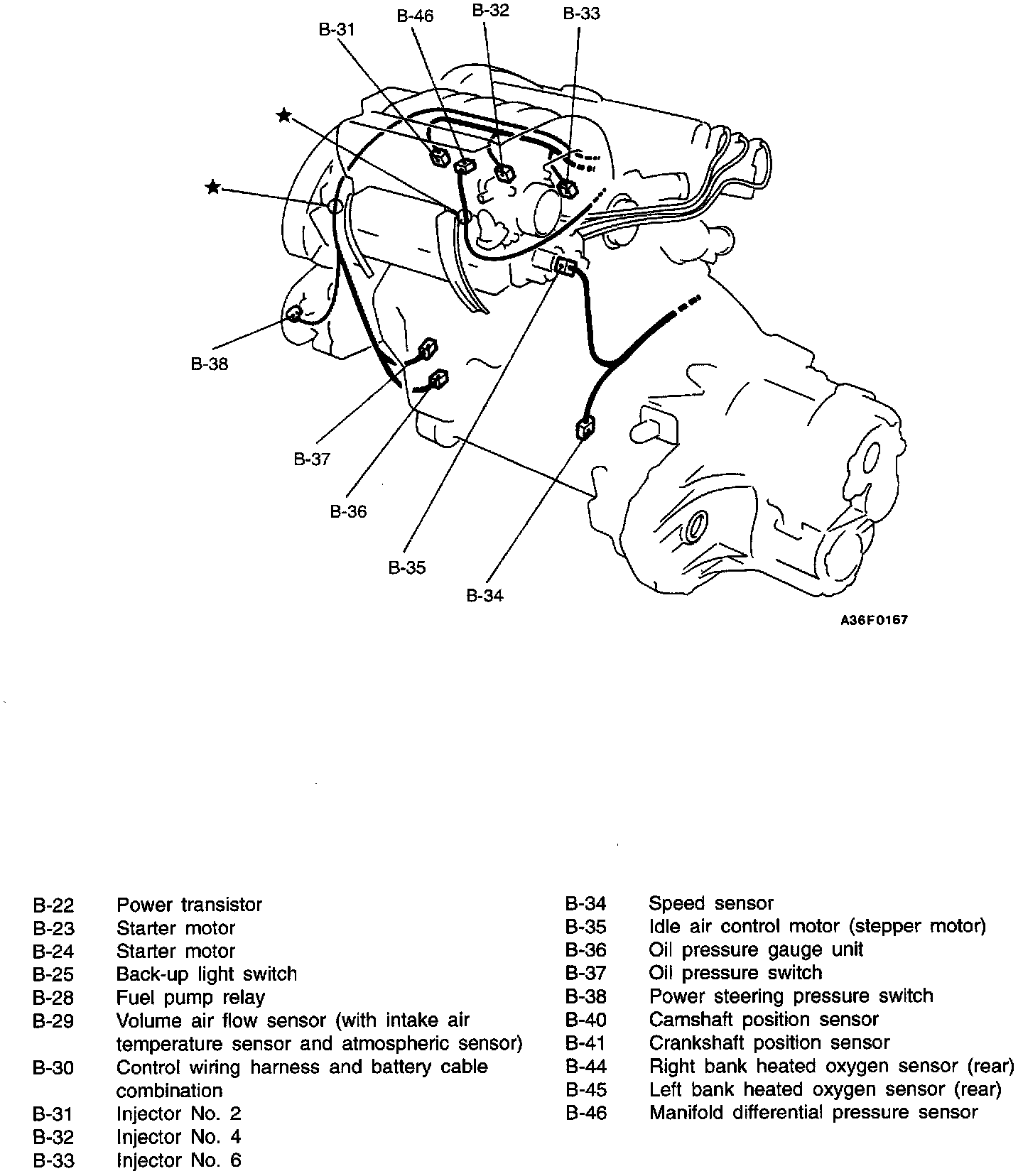

B Connectors - Engine And Transaxle (Part 2 Of 2):
