Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Test 11 - Overdrive Cancellation Function Related Circuits
Test 11 - Overdrive Cancellation Function Related Circuits

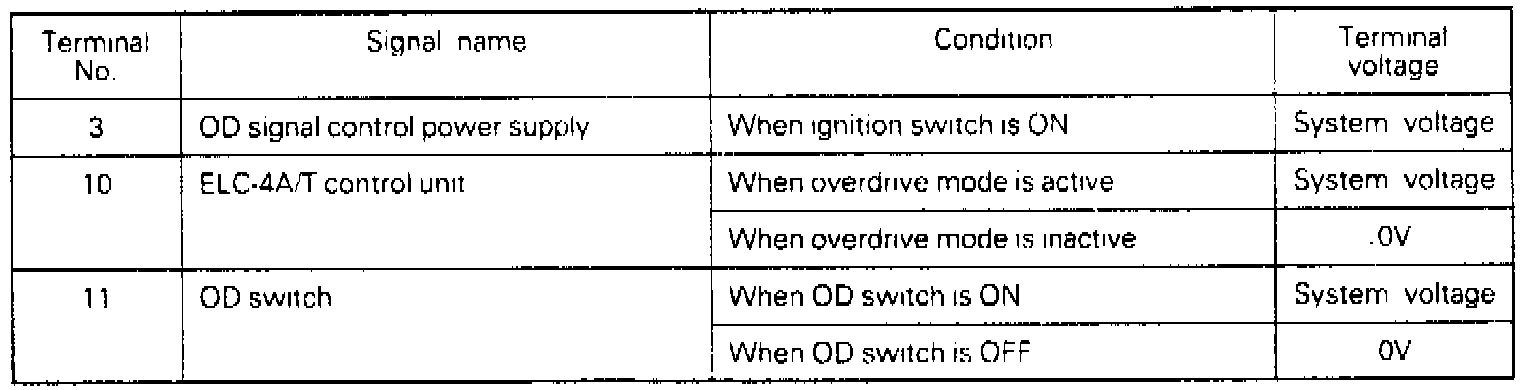

Fig. 37 Test No. 11: Overdrive Cancellation Function Related Circuits:
