Test 10 - Accelerator Switch Off Function Related Circuits

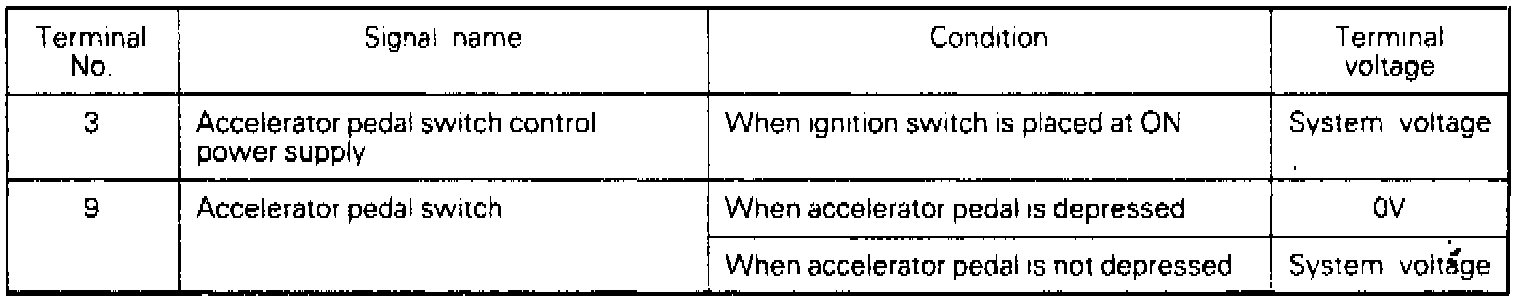

Fig. 36 Test No. 10 Accelerator Switch Off Function Related Circuits:
