Brake Switch (Cruise Control): Testing and Inspection

1. Disconnect electrical connector from switch.

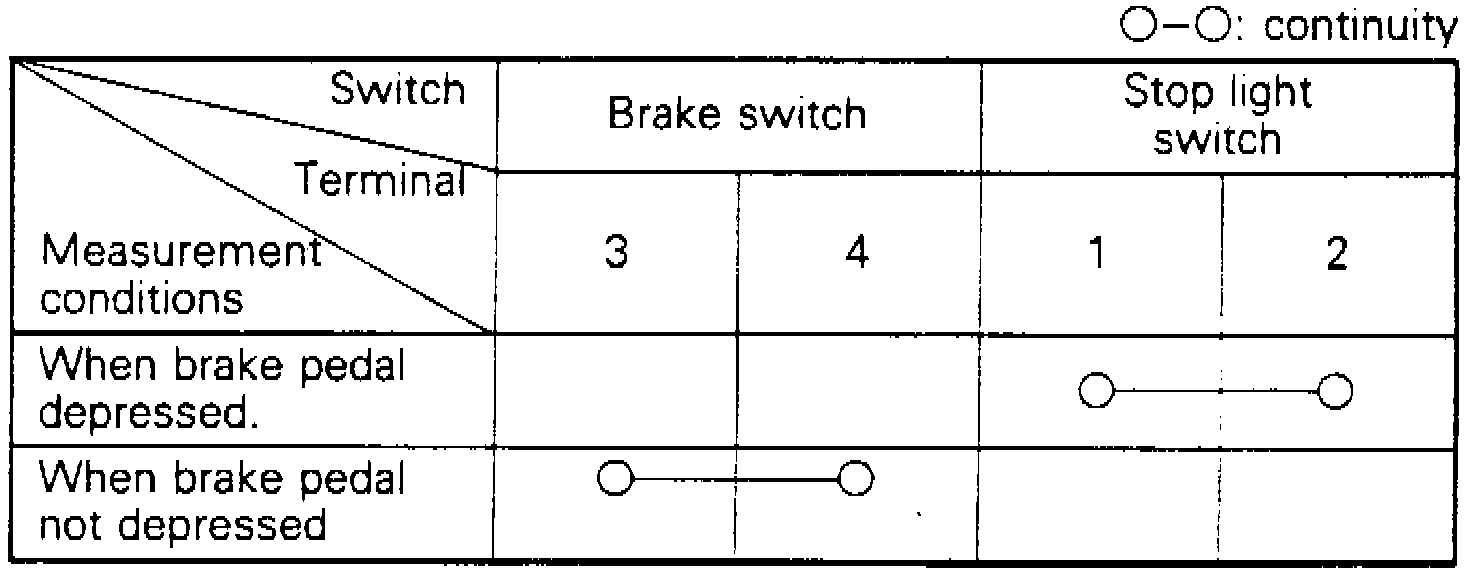

Fig. 49 Stoplight/brake Switch Test:





2. Check for continuity between terminals of switch.
