Brake Booster Pushrod-to-Primary Piston Clearance

1. Remove master cylinder from vehicle, as described under Master Cylinder/Service and Repair, proceed as follows:

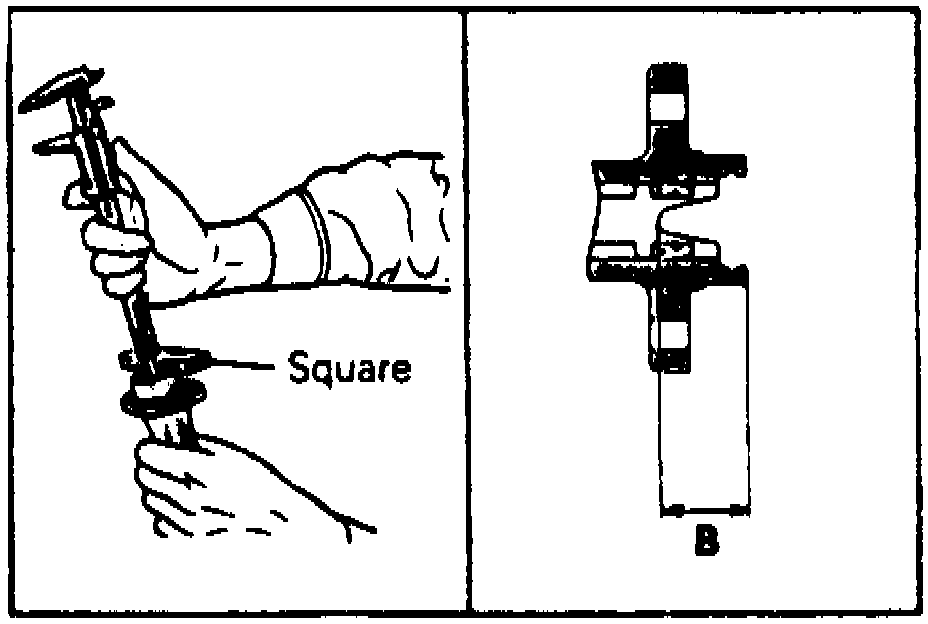

Fig 8 Master Cylinder End Face To Piston Measurement:

a. Measure distance between master cylinder end face and the piston. Position a square (straight scale) against edge of master cylinder, then measure and subtract thickness of the square to determine dimension B.

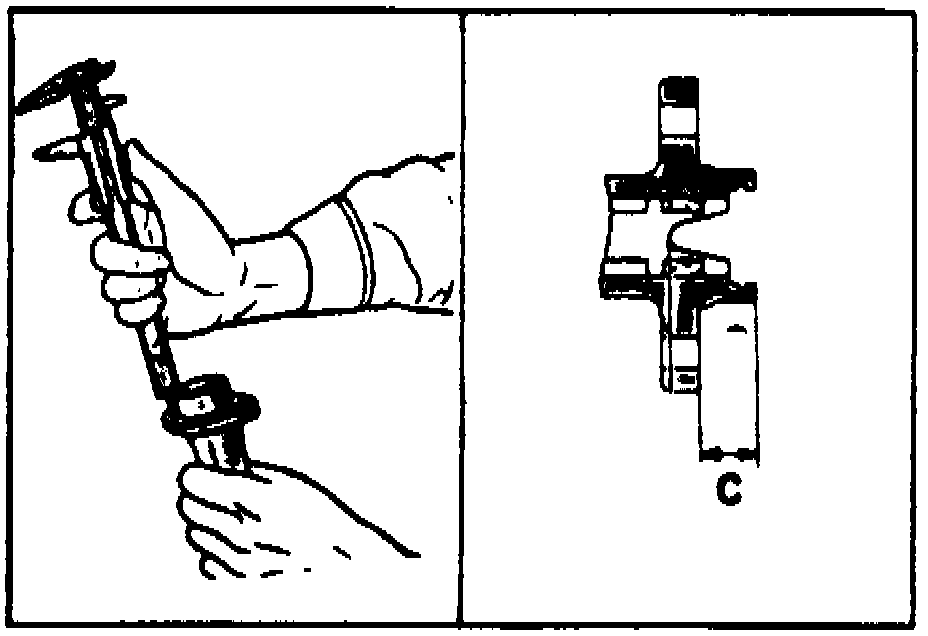

Fig 9 Brake Booster Mounting Surface To End Face Distance Measurement:

b. Find dimension C by measuring distance between brake booster mounting surface and the end face.

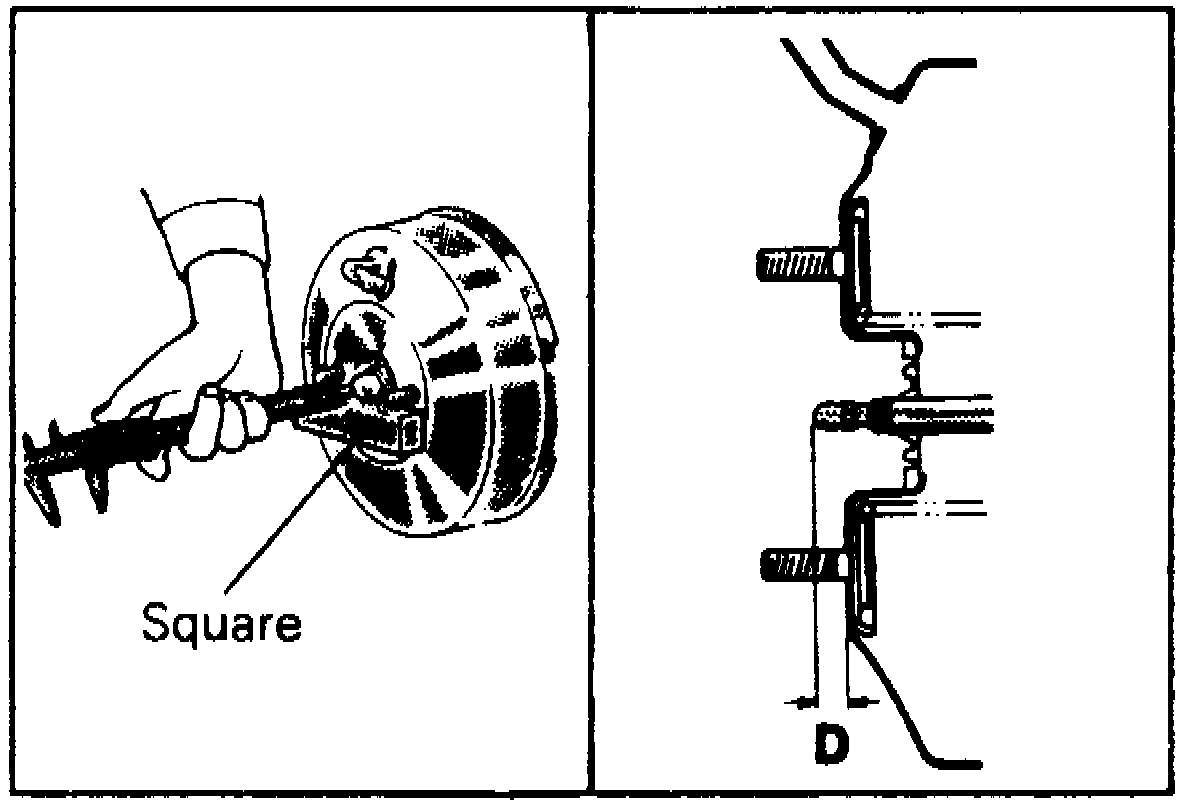

Fig 10 Master Cylinder Mounting Surface To Pushrod End Distance Measurement:

c. Measure distance between master cylinder mounting surface and the pushrod end. Find dimension D by subtracting the square's thickness from the measurement taken.

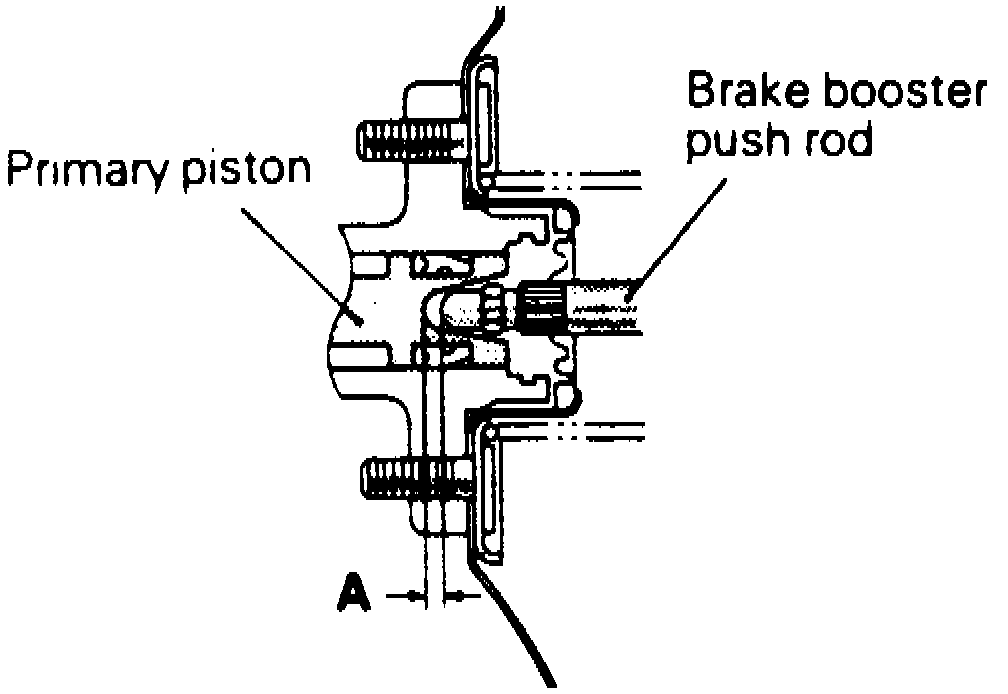

Fig 11 Brake Booster To Primary Piston Clearance Dimension A:

d. Find brake booster-to-primary piston clearance dimension A, using the formula A = B-C-D. Refer to the Hydraulic System/Specifications for proper clearance specifications.

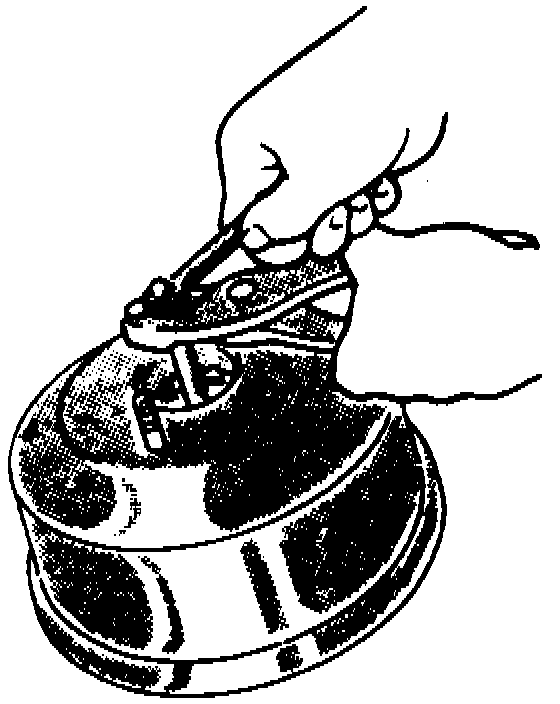

Fig 12 Brake Booster Pushrod Adjustment:

e. If dimension A is not as specified, adjust brake booster pushrod as shown.
