Sunroof / Moonroof: Service and Repair

REMOVAL AND INSTALLATION
Post-installation Operation
- Water Test

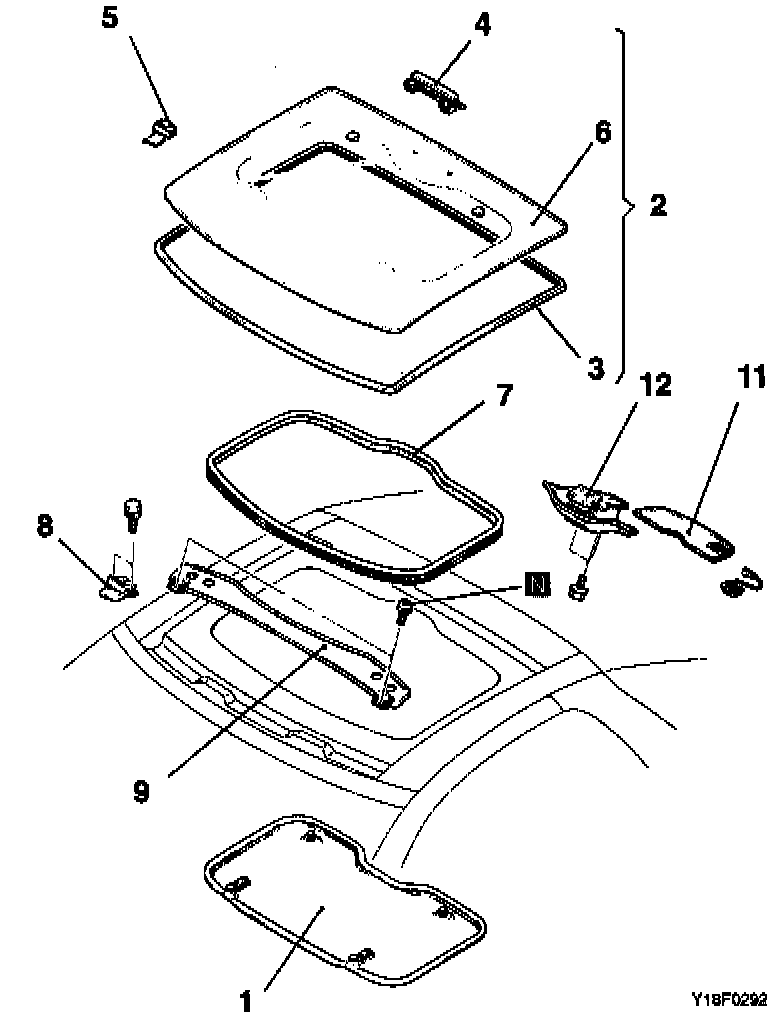

Roof lid glass removal steps
1. Sunroof trim assembly
2. Roof lid glass assembly
3. Weatherstrip
4. Slide lock latch assembly
5. Roof lid male hinge
6. Roof lid glass
7. Roof inner weatherstrip
8. Roof lid female hinge
9. Deflector

Roof lid regulator assembly removal steps
1. Sunroof trim assembly
2. Roof lid glass assembly
10. Interior temperature sensor
11. Regulator cover
12. Roof lid regulator assembly

INSTALLATION SERVICE POINTS

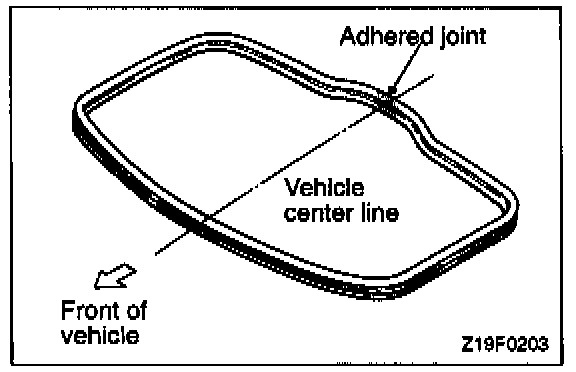

Roof Inner Weatherstrip Installation
Install the roof inner weatherstrip with its adhered joint located on the center line of the vehicle (toward the rear of the vehicle).
