Electrically Controlled Mirror Check

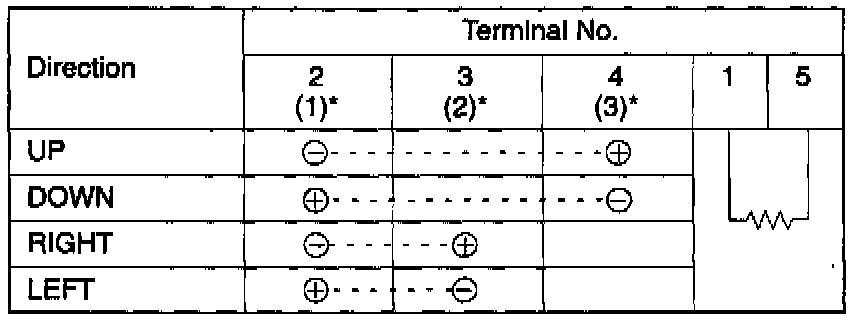

1. Check to be sure that the mirror moves as described in the table when each terminal is connected to the battery.
2. Check to see that there is continuity between terminals 1 and 5.

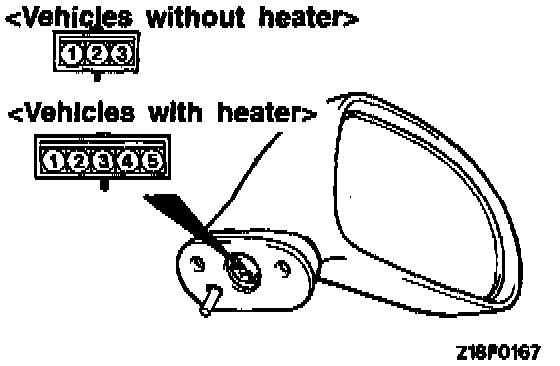

NOTE: * indicates door mirror terminal on vehicles without heater.
