Outside Rear View Mirror

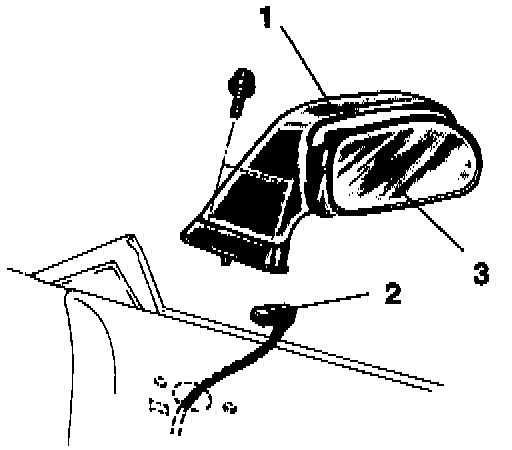

DOOR MIRROR REMOVAL STEPS
1. Door mirror
2. Harness connector
3. Mirror

REMOVAL SERVICE POINTS

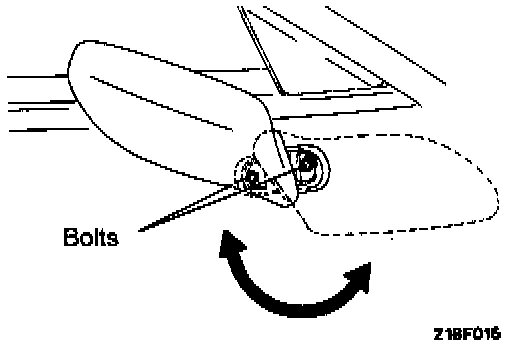

Door Mirror Removal
Tilt the door mirror backward and forward to remove the attaching bolts.





Mirror Glass Removal
Tilt the mirror upward and fit a screwdriver blade covered with protective tape in the notch between the mirror and the pivot plate to pry up the mirror.

CAUTION: Do not fit the screwdriver blade between the pivot plate and actuator assembly.
