Headliner: Service and Repair

PRE-REMOVAL AND POST-INSTALLATION OPERATION
- Sunroof Lid Glass Assembly and Sunroof Trim Assembly Removal and Installation
- Rear Roof Rail Trim Removal and Installation
- Front Pillar Trim Removal and Installation

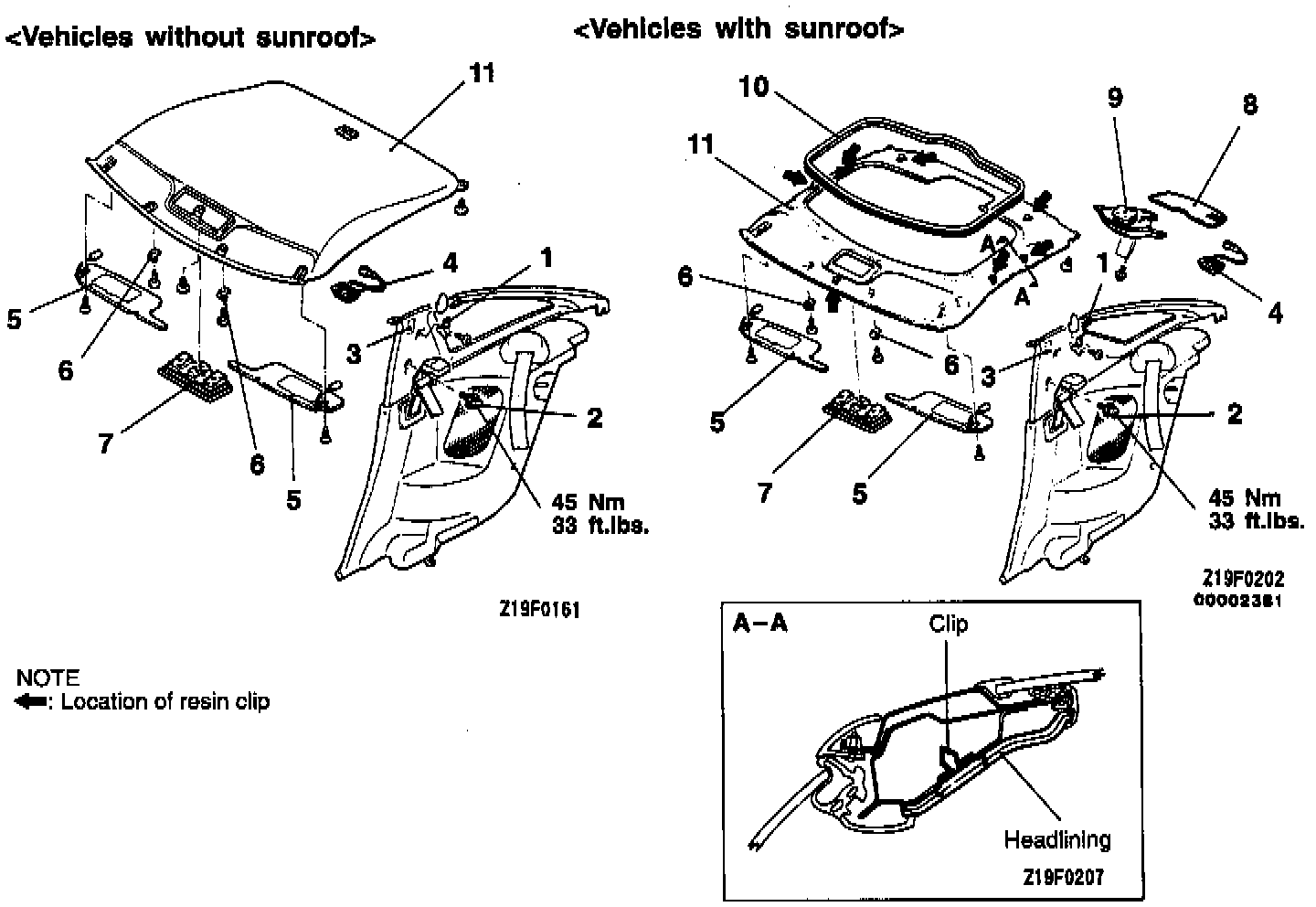

REMOVAL STEPS
1. Hanger bracket
2. Sash guide cover mounting bolt
3. Clip
4. Passenger compartment temperature sensor (Vehicles with full automatic air conditioning)
5. Sunvisor assembly
6. Sunvisor holder
7. Room light assembly
8. Regulator cover
9. Roof lid regulator assembly
10. Roof inner weatherstrip
11. Headlining

INSTALLATION SERVICE POINT





Roof Inner Weatherstrip Installation
Install the roof inner weatherstrip with its adhered joint located toward the rear of the vehicle and on its center line.
